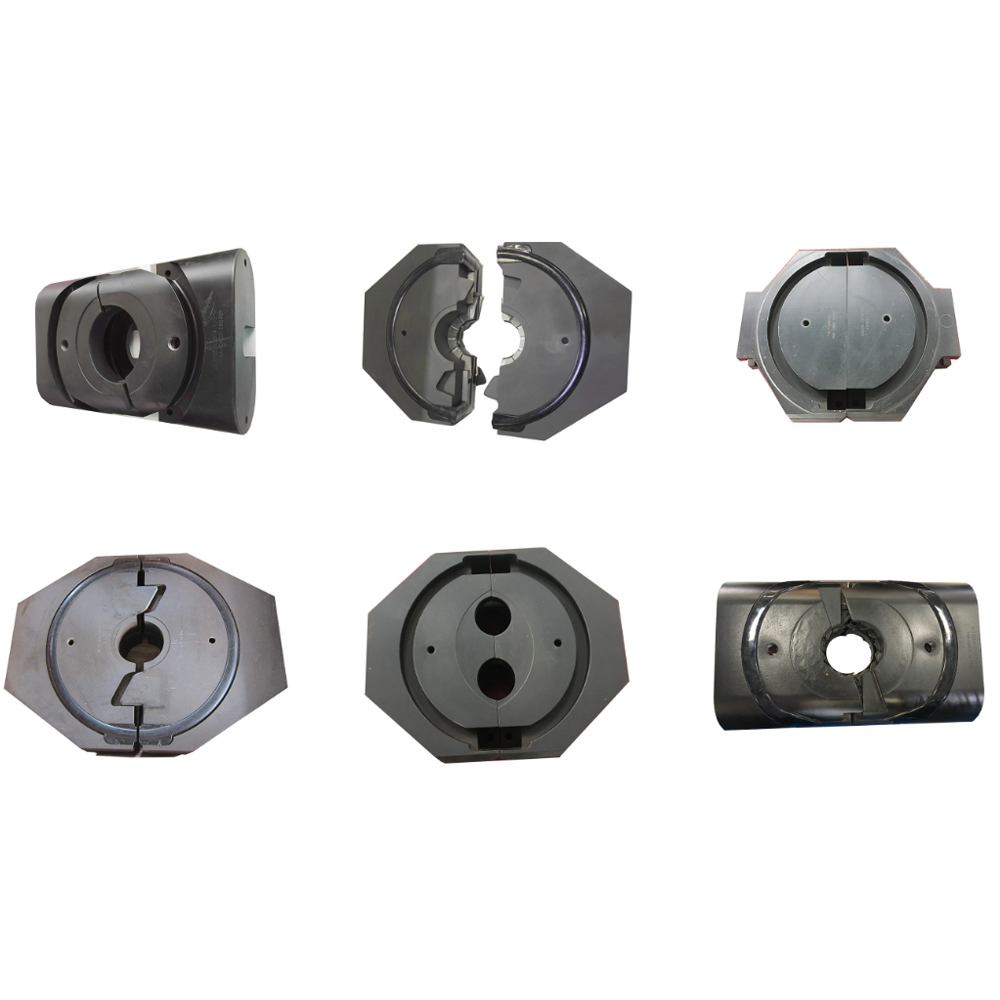

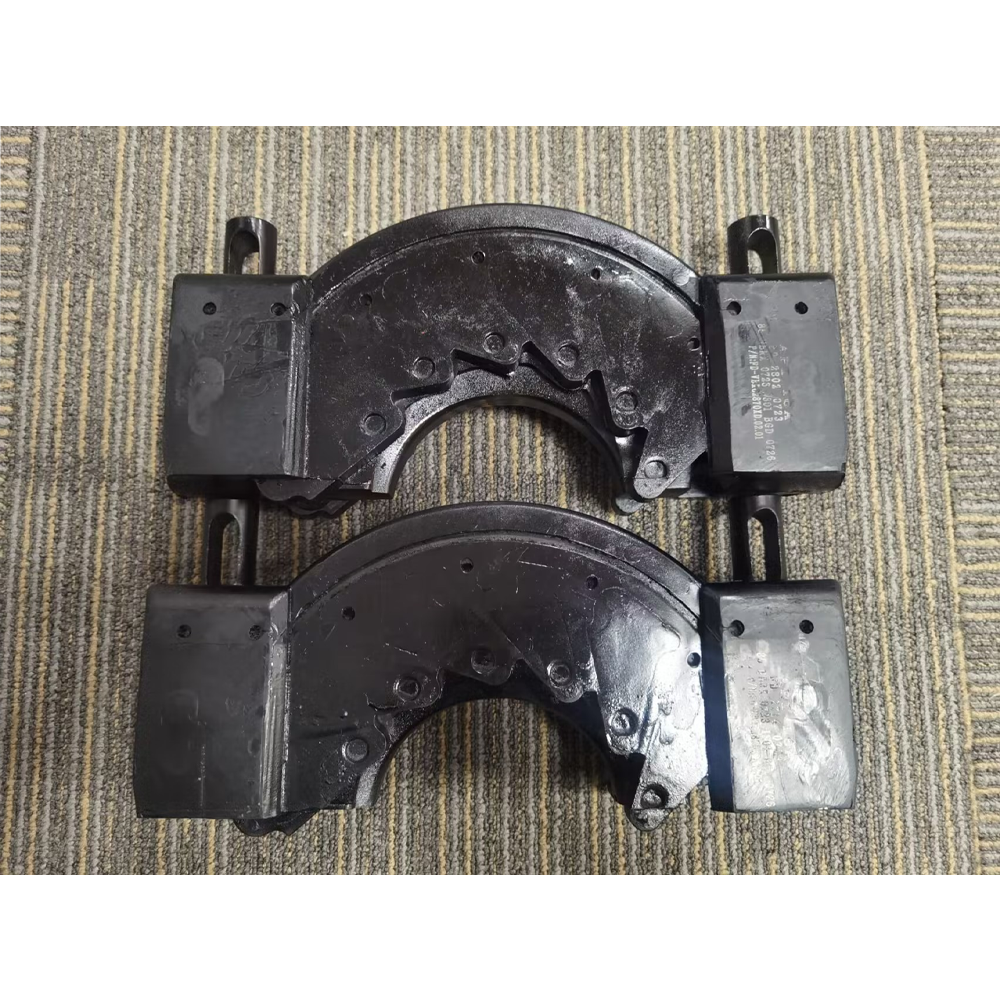

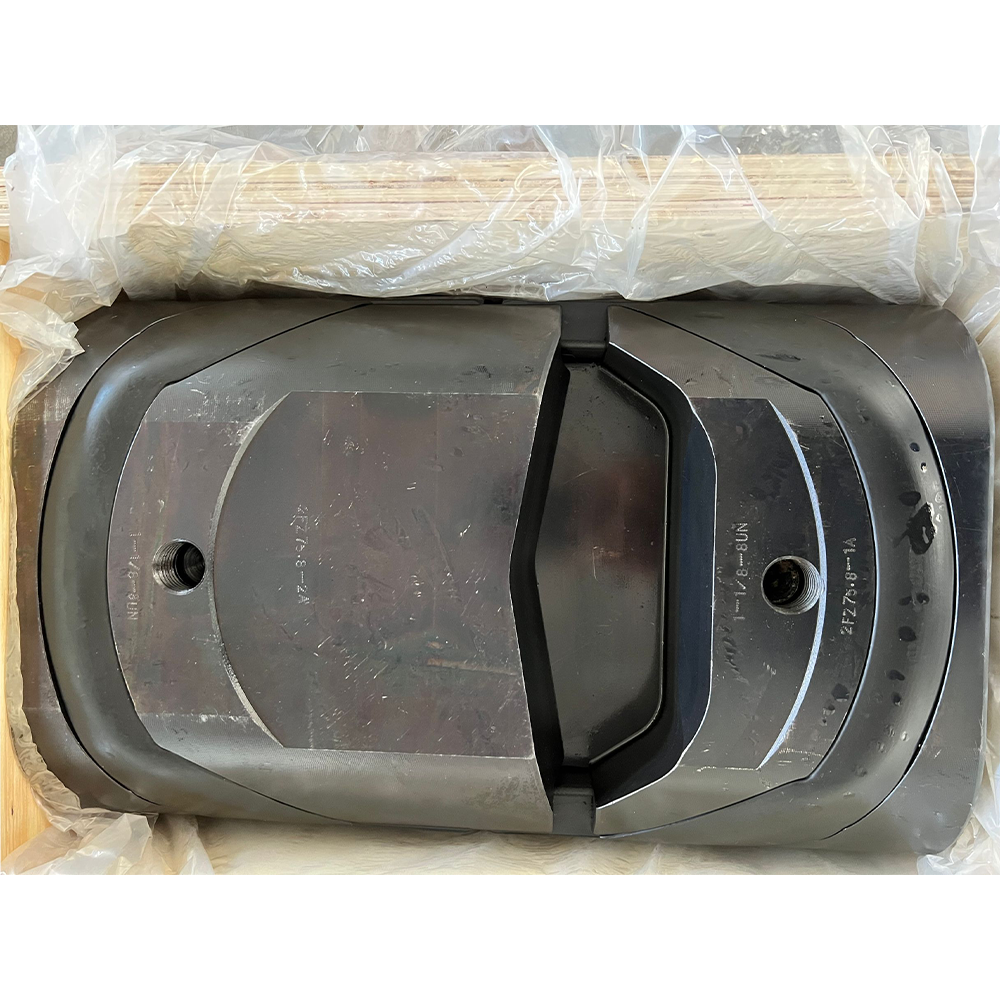

SBR VBR Variable Bore RAM

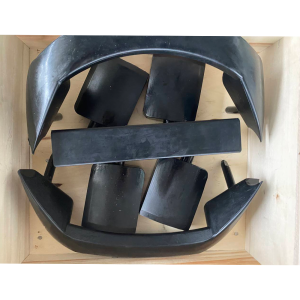

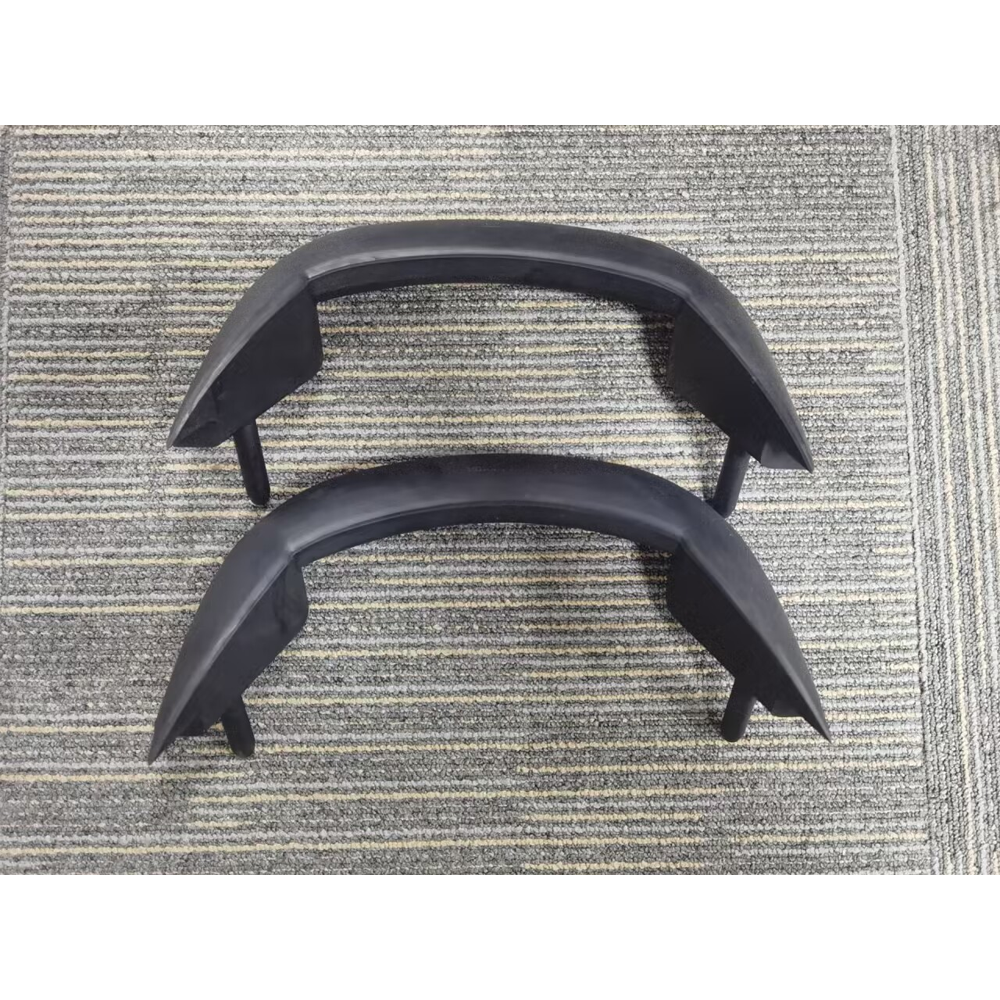

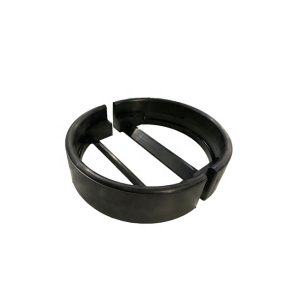

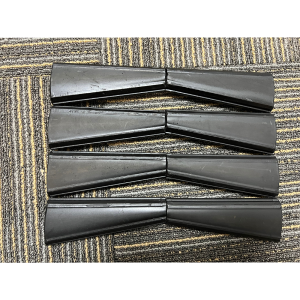

BOP part name: Packing element, shear ram, pipe ram, blind ram, variable bore ram, top sealing, front sealing, bonnet, piston, shell.

Ram-type blow out preventer is important equipment used in oil drilling operations. Variable bore ram-type blowout preventer, as a improved type, is capable of sealing around drill pipes with a range of sizes and have advantanges such as low cost and convenience, expatiate on the sealing well mechanism, this paper discusses the structural characterstics of several typres fo variable bore ram, the operation of the varialble bore ram is simulated with the finite element model. the distribution of the stress is analysed, which provides the toudation for optinizing the design of variable bore ram-type blowout preventer.

BOP parts that we supply all come from original manufacturers, they are 100% interchangeable.

1)Standard: API

2)Pressure: 2000~15000psi(14-70Mpa)
3)Size:Nominal bore7 1/16~21 1/4″ (179.4~539.75mm)

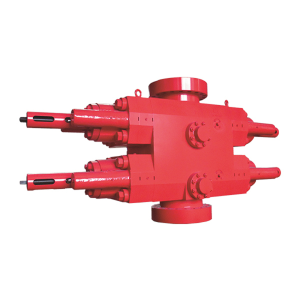

4) U type, S type Available
5) Shear/ Pipe/Blind Ram

6) According to the latest API Spec 16A standard,and quality standard of ISO9001.

Model Dimensions (mm) Weight (kg) Working temperature Range of seal well
FH18-21 Φ478×215 65.2 – 18~93°C 0~180
FH18-35
FH18-70
FH28-35 Φ703×323 270 0~280
FH28-70
FH35-35 Φ814×370 370 0~346.1
