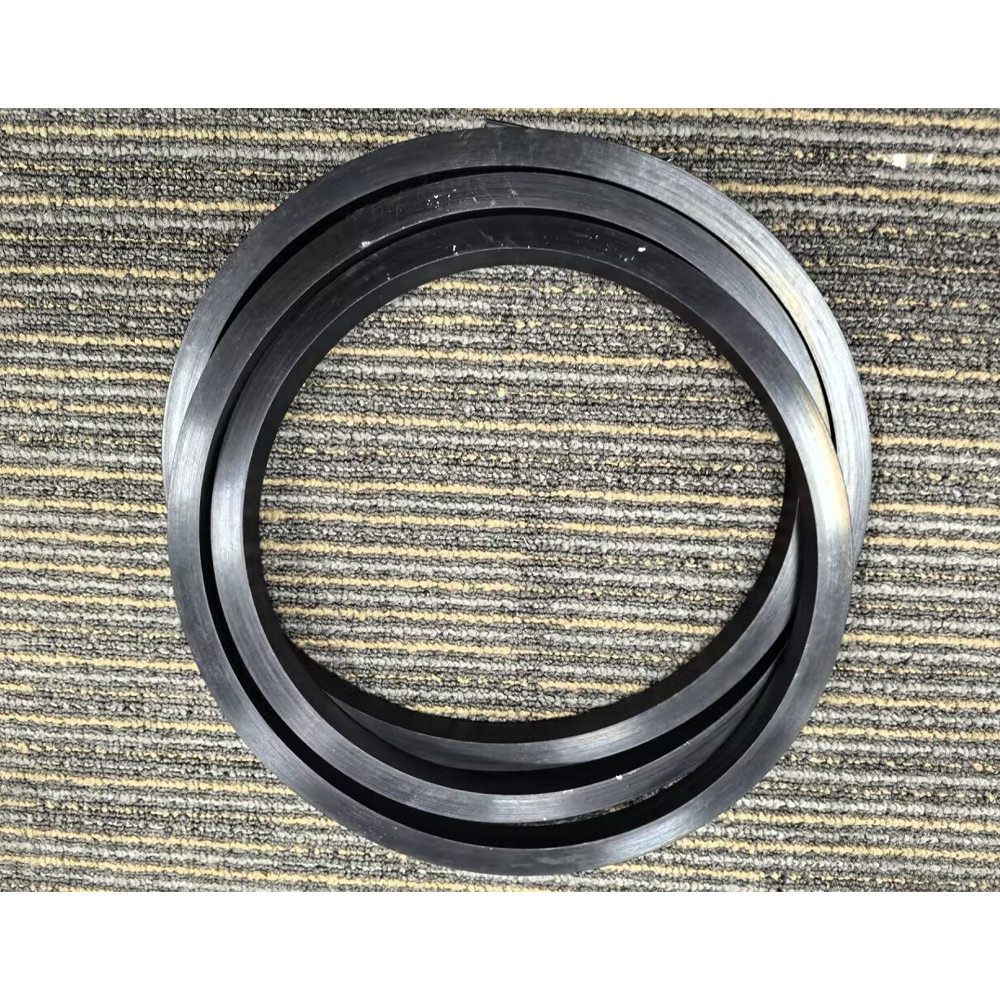

Seal-Adapter Ring I.D. Lower-FH2821NL10-00


Category: Tag:

Seal-Adapter Ring I.D. Lower-FH2821NL10-00

Our annular BOPs are designed and manufactured to API Spec 16A standard. Featuring a spherical or tapered packing element our they have a substantial significant volume, low operating pressures and excellent sealing.

Spherical or tapered packing element offers significant storage volume, low operating pressure and excellent sealing.
Bonnet is hemispherical-shaped so there is no stress concentration whenever bearing pressure. Pressure is evenly distributed; convenient for disassembly and assembly (except FHZ5414).
Low position of piston gives a shorter moving distance and less ring wear.
Lip type seal rings means longer service life.

No.DescriptionFH1821NL
P/N(Qty)		 FH1835NL FH1835/70NL
P/N(Qty) P/N(Qty)		FH2321NL
P/N(Qty)		FH2821NL
P/N(Qty)
1BonnetFH1821NL-01(1) FH1835NL-01 FH1835NL-01H2321NL-01(1)FH2821NL-02(1)
2PackerFH1835NL.02-00A(1) FH2321NL-02(1)
3Seal-Adapter Ring I.D.Upper FH1835NL-06 1) FH2321NL-10(1)FH2821NL-09(1)
4Wear Ring-
Adapter Ring		 FH1835NL-08(1)N/AN/A
5Seal-Adapter
Ring I.D. Lower		 FH1835NL-10(1)
H2321NL.11-00(1)FH2821NL.10-00(1)
6Adapter Ring FH1835NL-05(1) FH2321NL-06(1)FH2821NL-07(1)
7Seal-Piston O.D. FH1835NL-16(2) H2321NL.15-00(2)FH2821NL.15-00(2)
8Seal-Shell Upper FH1835NL-09(1)FH2321NL-09(1)FH2821NL.11(1)
9Seal- Shell LowerFH2321NL.12-00
FH1835NL-11-00(1)
10ShellFH1821NL-02(1) FH1835NL-13 H08.01FH2321NL-14(1)FH2821NL-01(1)
11Cap NutFH2321NL-03
FH2321NL-03(24) (22)
12StudFH2321NL-04
FH1835NL-03(24) (22)
13O-ring FH1835NL-04(1) FH2321NL-05(1)FH2821NL-06(1)
14O-ring FH1835NL-07(1)FH2321NL-08(1)FH2821NL-08(1)
15Wear Ring-Piston O.D. FH1835NL-15(2)FH2321NL-16(2)FH2821NL-14(2)
16Piston FH1835NL-14(1)FH2321NL-07(1)FH2821NL-16(1)
17Wear Ring-Shell. FH1835NL-12(1) FH2321NL-13(1)FH2821NL-13(1)
18Adapter substitute N/AN/AN/A
19Plug FH2835-22(2) FH2835-22(2)N/A
