Shaffer Type BOP Part Shear Ram Assembly

1, Working pressure2000~15000PSI (14~70MPa)

2, Nominal bore7 1/16″~13 5/8″ (179.4~346.1mm)

3, According to the latest API Spec 16A standard, and quality standard.

Category: Tag:

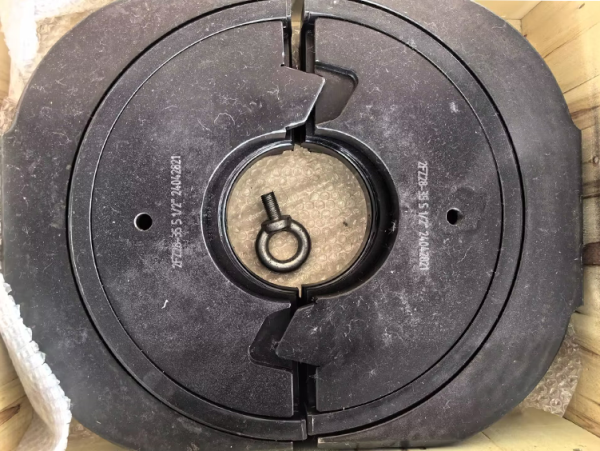

Type S Pipe Ram Assembly

The S Pipe Ram is used for single or double Ram Blow Out Preventer(BOP). The ram’s size is matched with the pipe’s OD. It can be closed between the pipe stem and well annular space. In addition to the details mentioned, the type S Pipe Ram serves as an integral component in single or double Ram Blow Out Preventer (BOP) assemblies. Its unique design, specifically tailored to match the outer diameter of the pipe, ensures an effective and robust seal, helping to maintain wellbore integrity during high-pressure situations.

The type S Pipe Ram is engineered with a blend of durability and precision. It’s constructed using high-grade materials that can withstand harsh drilling conditions, enhancing its longevity and reliability. The design of this ram assembly strikes a balance between rigidity and flexibility, allowing for an optimal seal in various operational situations.

SIZE (MM)SIZE (IN)SIZE (MM)SIZE (IN)
FH18-217-1/16” x 3,000FHZ18-707-1/16’’ x 10,000
FH18-357-1/16” x 5,000FHZ18-70/1057-1/16’’ x 10,000 / 15,000
FH18-35/707-1/16” x 5,000 / 10,000 FHZ28-3511” x 5,000
FH23-219” x 3,000FHZ28-7011” x 10,000
FH28-3511” x 5,000FHZ28-70/10511” x 10,000 / 15,000
FH28-35/7011” x 5,000 / 10,000FHZ28-10511’’ x 15,000
FH28-7011” x 10,000FHZ28-105/14011’’ x 15,000 / 20,000
FH28-70/10511” x 10,000 / 15,000FHZ35-2113-5/8” x 3,000
FH35-2113-5/8” x 3,000FHZ53-2120-3/4’’ x 3,000
FH35-3513-5/8” x 5,000FHZ54-1421-1/4” x 2,000
FH35-35/7013-5/8” x 5,000 / 10,000FHZ75-3.529-1/2’’ x 500
FH35-7013-5/8” x 10,000
FH35-70/10513-5/8” x 10,000 / 15,000
