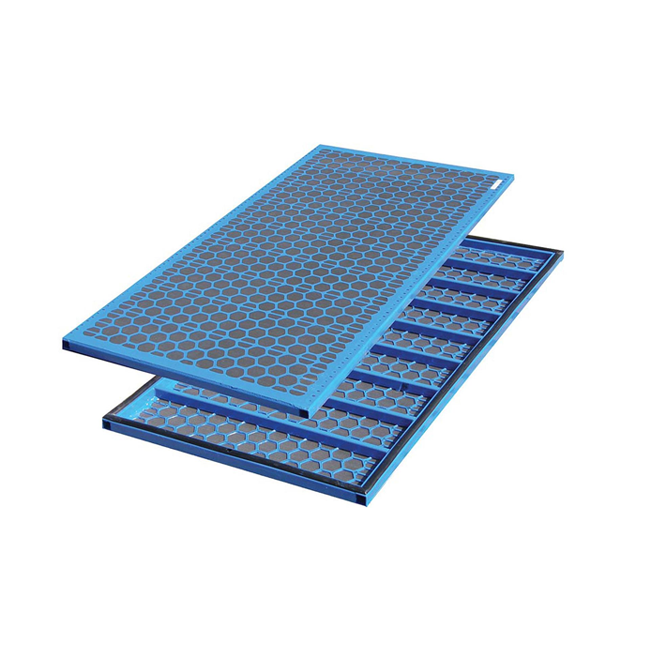

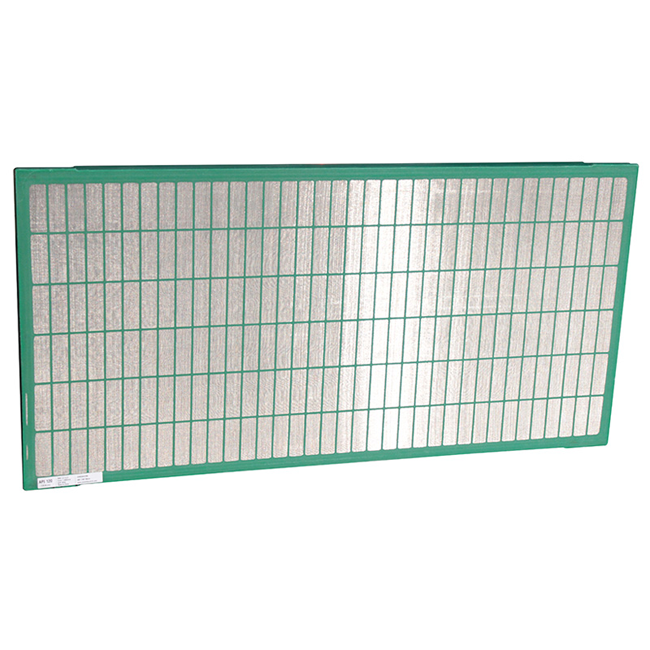

All-petro Shaker Screen is a high quality & cost effective OEM shaker screens, and replacement screens for different shale shaker manufacturers. With the worldwide network branches and partners, we provides technical support, consignment support, and fast delivery to the international drilling industry.
Product Details:
• High performance wire mesh configuration is compliant to API RP13C with normally longer screen life.
• Four side tension of mesh during the heat press to minimize the gap between the top screen and support screens, in a result extending the screen life.
• Replacement for MI-Swaco Mongoose, MI-Swaco MD-3/MD-2, Nov Brandt Cobra, Venom, VSM-300, FSI screen, FLC 2000 FLC 500 etc. And we can customize for your screen dimension.
| D100 Cut Point | ASTM Single Mesh |
|---|---|
| 2000 microns | ASTM 10 Mesh |
| 1000 microns | ASTM 18 Mesh |
| 850 microns | ASTM 20 Mesh |
| 710 microns | ASTM 25 Mesh |
| 600 microns | ASTM 30 Mesh |
| 500 microns | ASTM 35 Mesh |
| 425 microns | ASTM 40 Mesh |
| 355 microns | ASTM 45 Mesh |
| 300 microns | ASTM 50 Mesh |
| 250 microns | ASTM 60 Mesh |
| 212 microns | ASTM 70 Mesh |
| 180 microns | ASTM 80 Mesh |
| 150 microns | ASTM 100 Mesh |
| 125 microns | ASTM 120 Mesh |
| 106 microns | ASTM 140 Mesh |
| 90 microns | ASTM 170 Mesh |
| 75 microns | ASTM 200 Mesh |
| 63 microns | ASTM 230 Mesh |
| 53 microns | ASTM 270 Mesh |
| 45 microns | ASTM 325 Mesh |
| 38 microns | ASTM 400 Mesh |
