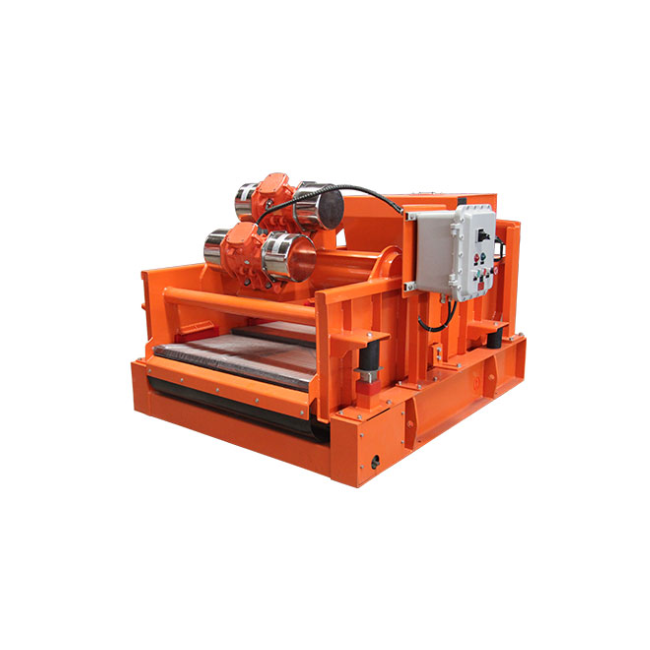

• ZS752 series Mini shakers have been widely used in trench-less HDD, water well drilling, diamond core drilling etc., best option for compact system and low flow rate.

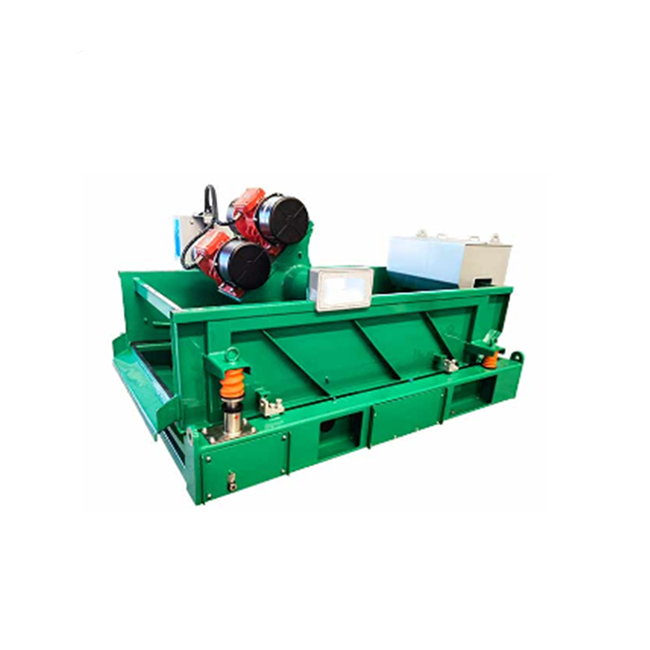

• ZS703 & ZS594 series single deck shale shaker is popular in oil gas drilling, big trench-less HDD projects, or other industry separation demand.
• ZS706 series double deck shaker is properly designed for piling, TBM, big oil gas rig, big trench-less project, or the industry separation for multi- phase separation.
| Model | ZS752F-MDZF | ZS703F-SDZF | ZS703F-SHBF | ZS594F-SHBF | ZS706F-SHBF |
|---|---|---|---|---|---|
| Vibration Mode | Linear Motion | ||||
| Capacity(m³/h) | 45(200GPM) | 120(528GPM) | 140(616GPM) | 140(616GPM) | |
| Vibration | 2×1.0 | 2×1.72 | 2×1.94 | ||
| Motor(Kw) | |||||
| Screen Qty(Pcs) | 2 | 3 | 4 | 6 | |
| Screen Size(mm) | 750×900 | 700×1250×29 | 585×1165×40 | Up:750×900 | |
| Down:700×1250 | |||||
| Screen Area(m2) | 1.35 | 2.63 | 2.73 | Up:2.03 | |
| Down:2.63 | |||||
| Adjustable G Force | ≤7.5G | ≤7.3G | |||
| Vibration | 4.14~5.96 | 4.04~5.82 | |||
| Amplitude(mm) | |||||
| Deck Angle Range | +2° | -1°~+5° | |||
| Feeding Type | Top Box Feeder | Weir Feeder | |||
| Weir Height(mm) | 714 | 1060 | 895 | ||
| EX Standard | ExdIIBt4 / IEC EX/ ATEX | ||||
| Weight(Kg) | 929 | 1665 | 1571 | 1624 | 1795 |
| L×W×H(mm) | 1816×1657×1083 | 2462×2007×1476 | 2744×1968×1435 | 2989×1968×1435 | 2744×1968×1435 |
| Remarks | Above capacity only for reference, actual capacity will be various as per screen API No. and mud conditions | ||||
