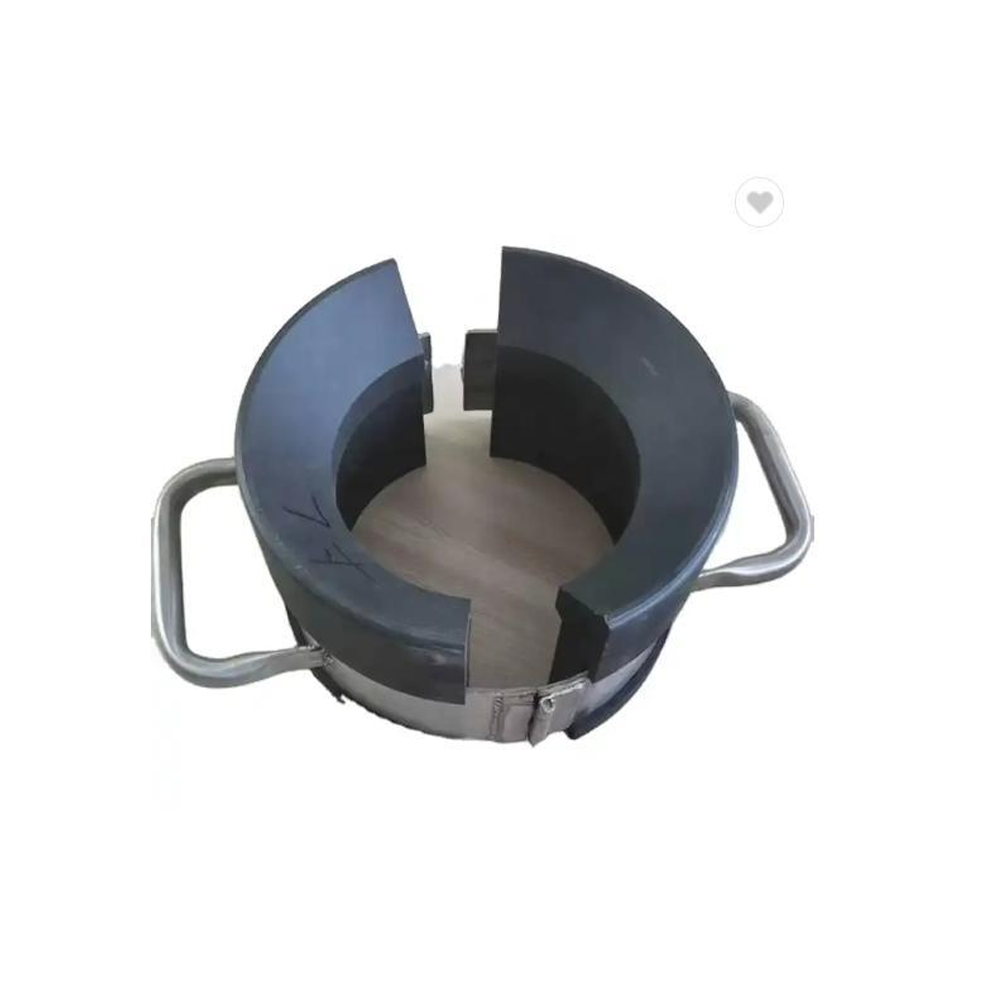

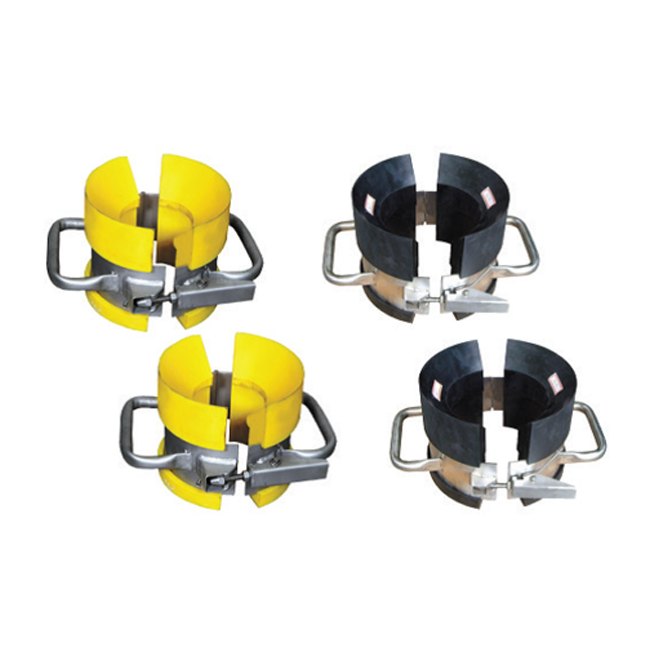

Stabbing guides are designed to prevent damage during make-up. It is manufactured from high-grade steel and Nitrile rubber material or Nylon material, It is easy to operate and can protect the screw thread of the pipes effectively. The guides are used available for tubing, casing and drill pipe.
| Model | Applicable Diameter of Tubulars (in) | Model | Applicable Diameter of Tubulars (in) |
|---|---|---|---|
| SG2-3/8T | 2-3/8 Tubing | SG 7-5/8 C | 7-5/8 Casing |
| SG2-7/8T | 2-7/8 Tubing | SG8-5/8C | 8-5/8 Casing |
| SG3-1/2T | 3-1/2 Tubing | SG9-5/8C | 9-5/8 Casing |
| SG4T | 4 Tubing | SG10-3/4C | 10-3/4 Casing |
| SG4-1/2T | 4-1/2 Tubing | SG11-3/4C | 11-3/4 Casing |
| SG4-1/2C | 4-1/2 Casing | SG13-3/8C | 13-3/8 Casing |
| SG5C | 5 Casing | SG13-5/8C | 13-5/8 Casing |
| SG5-1/2C | 5-1/2 Casing | SG14C | 14 Casing |
| SG6C | 6 Casing | SG16C | 16 Casing |
| SG6-5/8C | 6-5/8 Casing | SG18-5/8C | 18-5/8 Casing |
| SG7C | 7 Casing | SG20C | 20 Casing |
