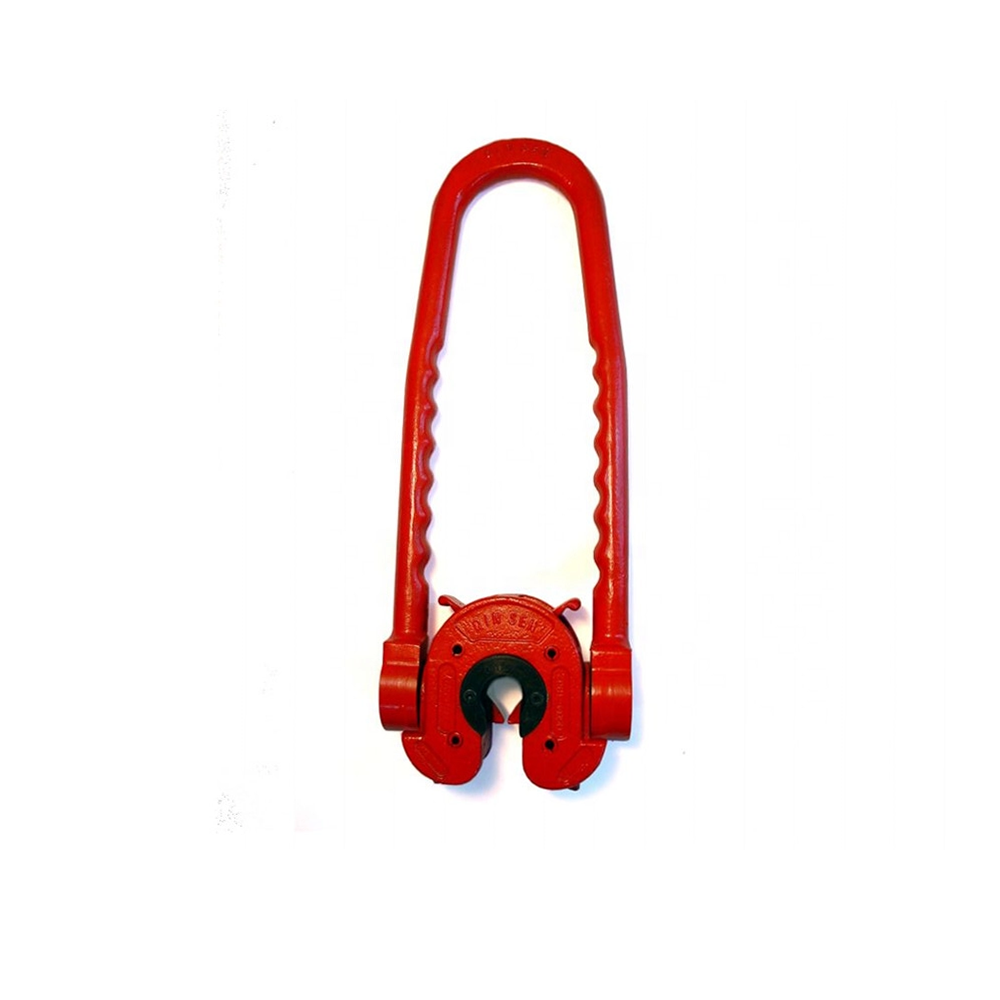

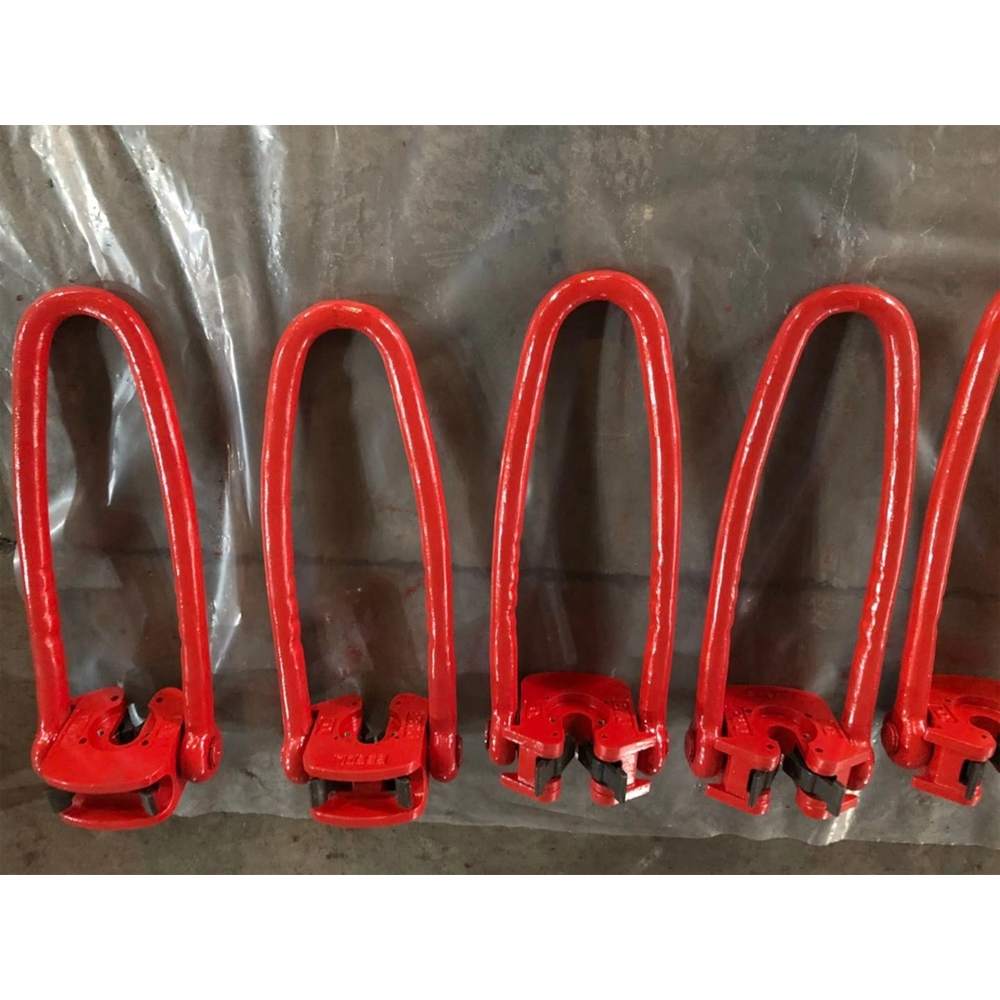

Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C PSL1-specification for drilling and production Hoisting Equipment.
Features of Sucker Rod Elevator:
-Available 25ton load capacity.
-Available solid body or plate-type style.
-Available in a size range of 5/8” ~ 1-1/2”.
-Strictly tested according to API.
-Made from high-quality heat-treated alloy.
| Model | Applicable for Diameter of Tubular(inch) | Rated Capacity(Ton) |
|---|---|---|
| SRE20 | 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2, | 20 |
| SRE25 | 5/8, 3/4, 7/8, 1 | 25 |
