Swivel Joint, Style 50, 3”602 MxF, 6000 psi, STD Service

Category: Tag:

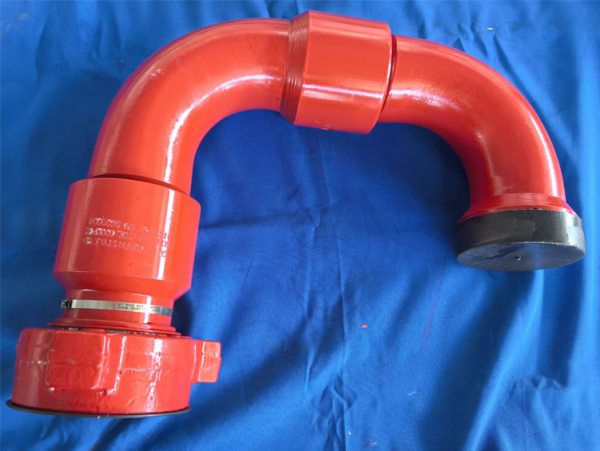

Swivel Joint, Style 50, 3” 602 MxF, 6000 psi, STD Service

3” FIG 602, SWIVEL JOINT, STYLE 50, M X F,SOUR SERVICE, 6000 PSI, Made as per API 6Astandard.

Swivel joints are metal pipe fittings with integral ball-bearing swivels. They are commonly used in manifolds which enable 360 degrees rotation and angle change for flexible connection in limited space and are ideal choices for well service. As an API-6A & API-16C certified manufacturer, All-Petro swivel joints are forged from premium alloy steel. The contents of various alloy elements are under strict control during material smelting, heat treatment to ensure excellent hardness, strength and ductility.

SIZEP
(MM)
P
(INCH)
Q
(MM)
Q
(INCH)
R
(MM)
R
(INCH)
WT.
(LBSF)
WT.
(KGF)
1”2148.421887.41114.3719.849
1 1/2”25910.22399.41285.0459.527
2”27710.927210.71455.76228
3”36914.5241716.42203814164
4”45217.853921.222479.72291132
*FOR 2002 /2202 UNION ENDS CONSULT FACTORY
