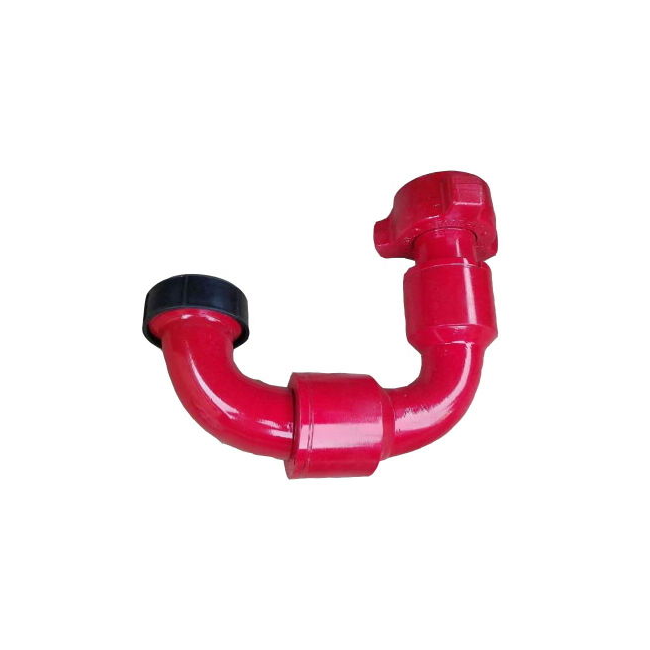

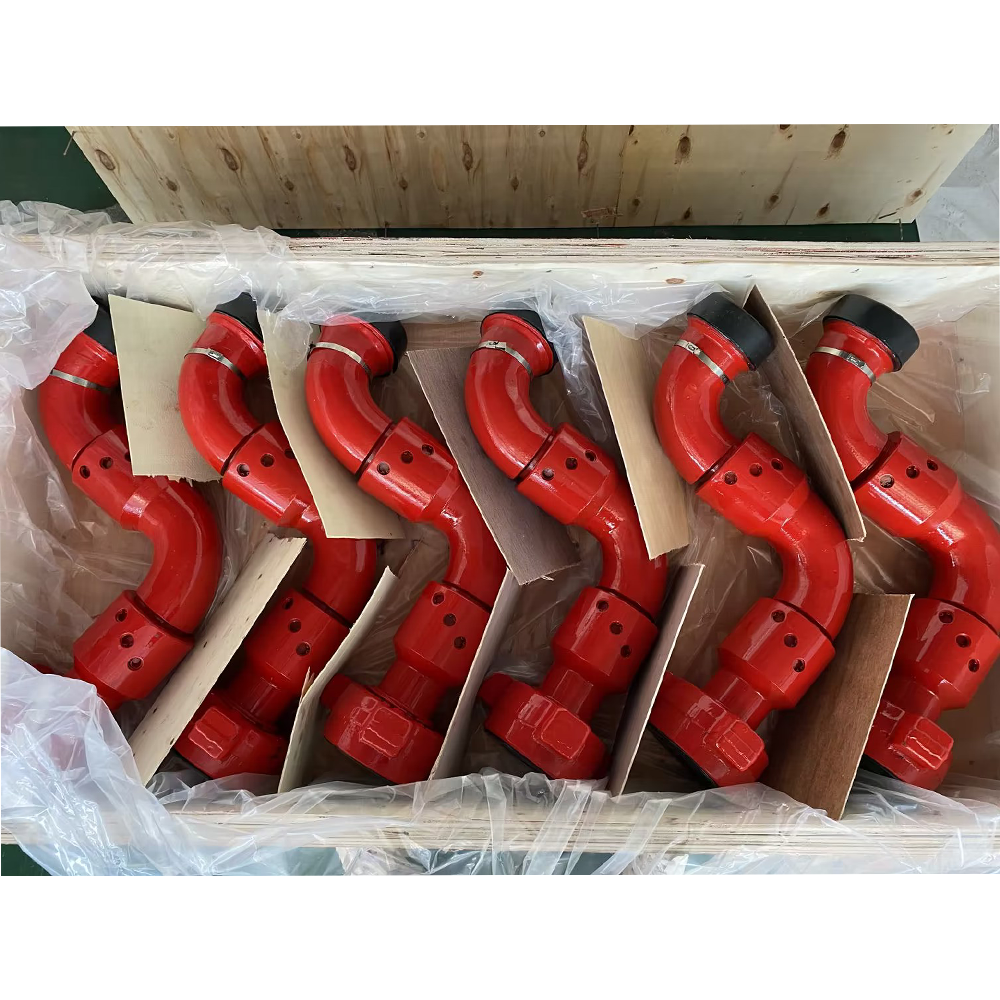

Swivel joint is a kind of high-pressure fluid control product, which is commonly applied to cementing and fracturing equipment. It is used to change the pipeline connection direction, to make it more convenient and easier to connect the pipe fittings. It is widely used in acid working environments, to connect the high-pressure discharge pipe, suction pipe, temporary flow pipeline, well test line and high-pressure transmission line.

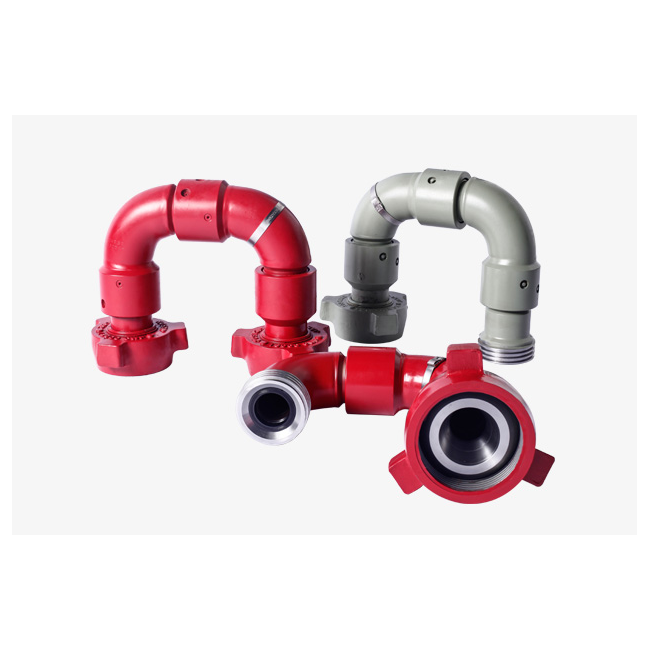

To meet diverse needs, ALL-PETRO offers swivel joints of 9 basic styles, suitable for cementing, acidizing, fracturing and testing lines, and customized service is also available .
• Mating repair kits make maintenance fast and easy, reducing cost.
• Integrated structure composed of metal frame and rubber delivers reliable seal.
• Uniform wall thickness allows long service life and high blasting-proof safety factor.
• Integral hardening treatment improves surface hardness and core toughness.
| Rated Working Pressure | 69.0MPa~103.5MPa (10,000psi～15,000psi) | |
|---|---|---|
| Nominal Size | 2″ | |
| Temperature Rating | -29℃~121℃(PU), -46℃~121℃ (LU) | -20℉~250℉ (PU),-50℉~250℉(LU) |
| Service | Standard, Sour Gas | |
| Application | Fracturing, Cementing, Acidizing, Testing Lines | |
