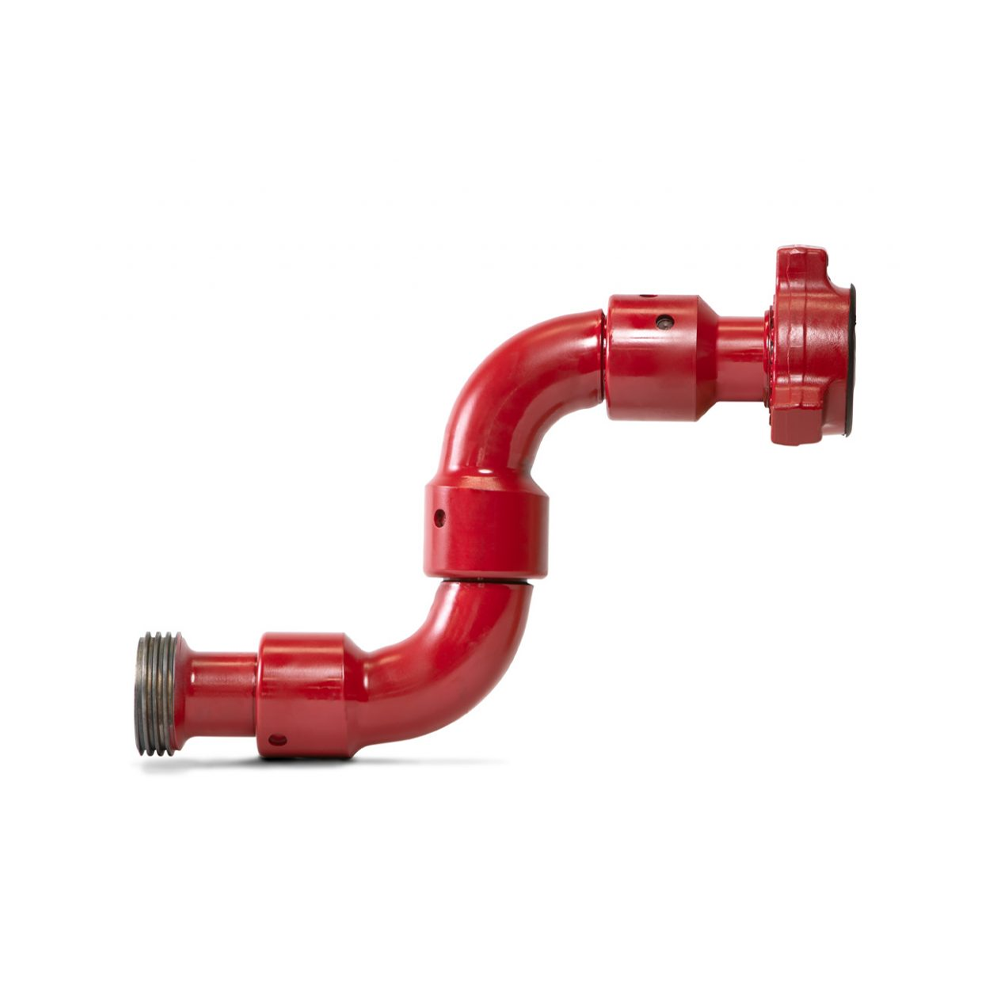

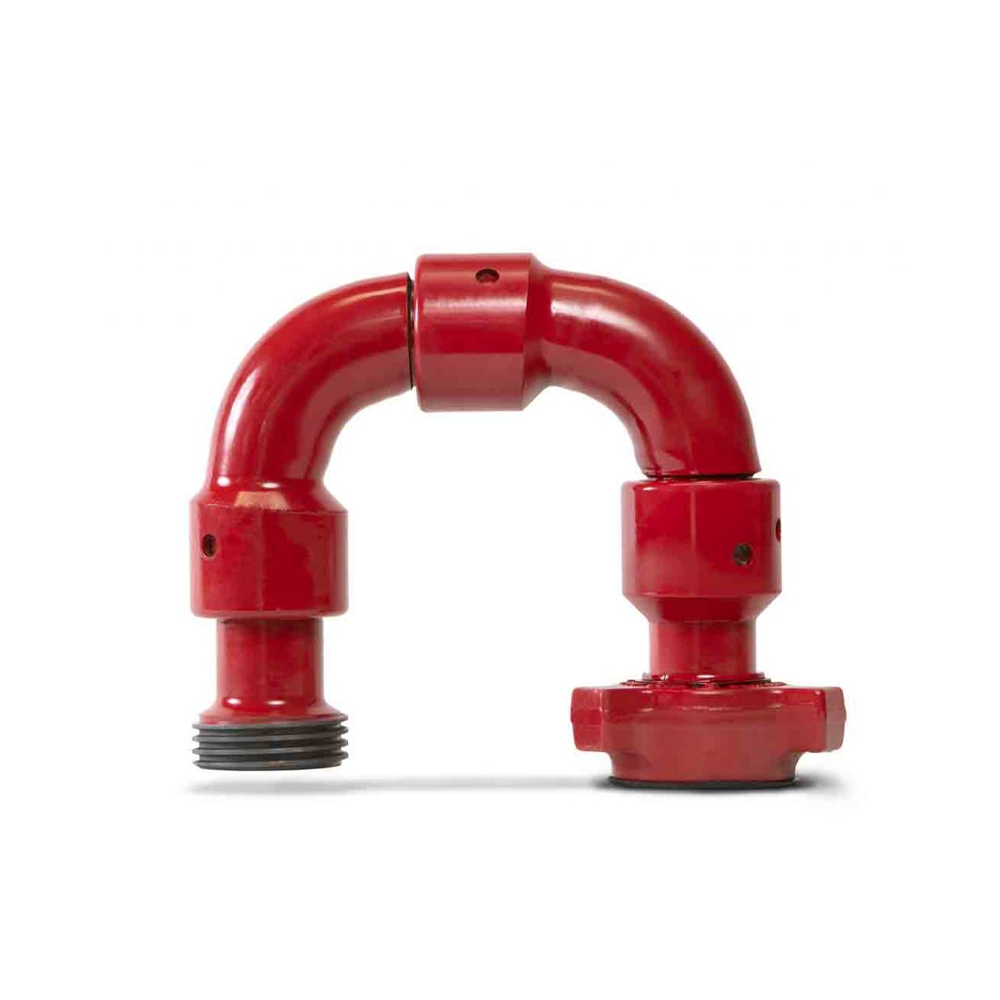

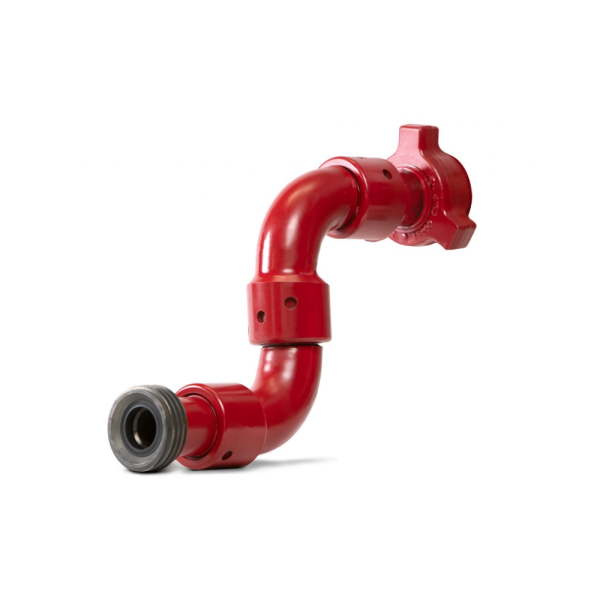

Swivel Joints are metal pipe fittings with integral ball-bearing swivels. They are designed for the critical service conditions that exist in fracturing, cementing, acidizing, and well testing. Available in 1″ through 4″ sizes with 6,000 PSI to 15,000 PSI and working pressure up to 20000 PSI test pressures. Swivel Joints normally come with Fig 1502, Fig 1002, and Fig 602 union ends for quick and simple make-up.
FMC Chiksan swivel joints are probabaly the most popular ones in today’s market. Based on FMC’s swivel joints, we redesign and manufacture the swivel joints which can hold a candle to those of Chiksan swivel joints. Our ball-bearing swivel joints are available for normal or low temperature, H2S environments or sour gas services at cold working pressures up to 20,000 psi.
| Product Type | WP (PSI) |
|---|---|
| 2″ Swivels | |
| 2″ 1502 Style 10 M x F | 15,000 |
| 2″ 1502 Style 10 M x M | 15,000 |
| 2″ 1502 Style 50 M x F | 15,000 |
| 3″ Swivels | |
| 3″ 1502 Style 10 M x F | 15,000 |
| 3″ 1502 Style 10 M x M | 15,000 |
| 3″ 1502 Style 50 M x F | 15,000 |
| 4″ Swivels | |
| 4″ 1502 Style 10 M x F | 15,000 |
| 4″ 1502 Style 10 M x M | 15,000 |
| 4″ 1502 Style 50 M x F | 15,000 |
| 4″ 1002 Style 10 M x F | 10,000 |
| 4″ 1002 Style 10 M x M | 10,000 |
| 4″ 1002 Style 50 M x F | 10,000 |
