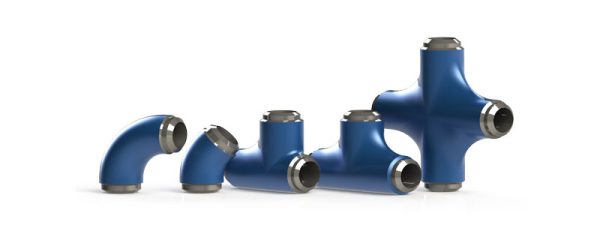

API High Pressure Fittings are very important components to connect high-pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines etc. These Fittings come in many types and shapes, such as Elbow, Tee, Cross, Crossover, Concentric Reducer, Eccentric Reducer, Weldolet, Long Radius Elbow, Short Radius Elbow, Goosenect Straight Pipe, “Y” Long Radius Pipe, End Pipe Cap.
ALL-PETRO High Pressure Fittings are machined from high strength forged alloy steel or stainless steel which guarantees long life span. All of our High Pressure Fittings come with full material traceability and are available for both standard service and H2S service.

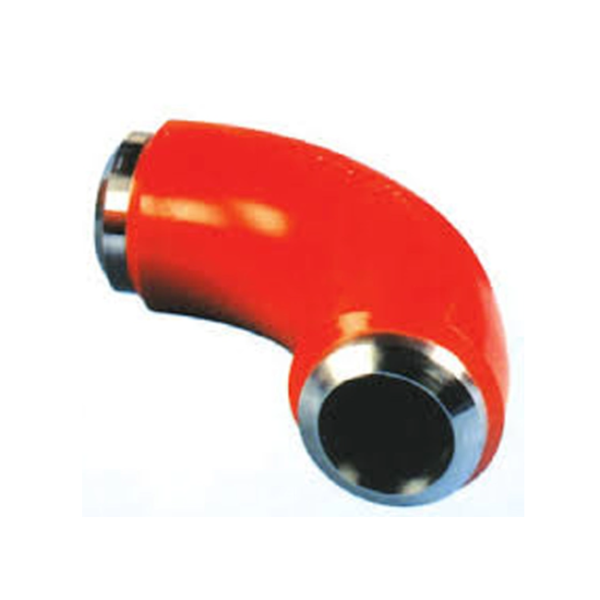

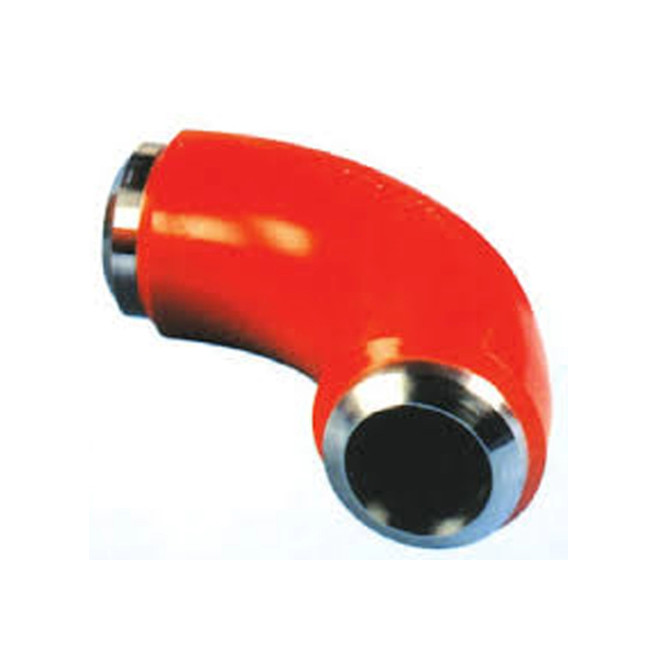

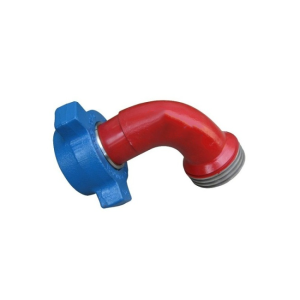

ALL-PETRO offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. ALL-PETRO standard specification for our 4130 long sweep elbows is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | R | C | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 203 | 150 | 53 | 14 |
| 3″ NB SCH XXS | 88.9 | 203 | 150 | 53 | 20 |
| 4″ NB SCH XXS | 114.3 | 280 | 210 | 70 | 39 |
| 5″ NB SCH XXS | 141.3 | 305 | 240 | 65 | 57 |
| 6″ NB SCH XXS | 168.3 | 381 | 305 | 76 | 105 |
| 5.5″ OD | 139.7 | 305 | 240 | 65 | 62 |
| 6.75″ OD | 171.45 | 381 | 305 | 76 | 105 |

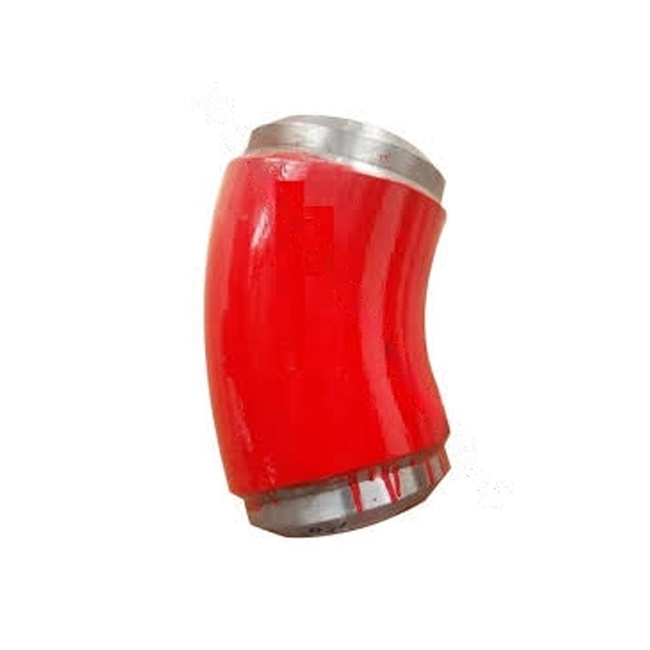

All-petro offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep elbows is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | R | C | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 118 | 150 | 56 | 9 |
| 3″ NB SCH XXS | 88.9 | 118 | 150 | 56 | 14 |
| 4″ NB SCH XXS | 114.3 | 162 | 210 | 75 | 26 |
| 5″ NB SCH XXS | 141.3 | 171 | 240 | 72 | 37 |
| 6″ NB SCH XXS | 168.3 | 203 | 305 | 25 | 57 |
| 5.5″ OD | 139.7 | 171 | 240 | 72 | 42 |
| 6.75″ OD | 171.45 | 203 | 305 | 25 | 62 |
All-petro offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep elbows is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | B | R | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 406 | 203 | 150 | 36 |
| 3″ NB SCH XXS | 88.9 | 406 | 203 | 150 | 33 |
| 4″ NB SCH XXS | 114.3 | 560 | 280 | 210 | 64 |
| 5″ NB SCH XXS | 141.3 | 610 | 305 | 240 | 90 |
| 6″ NB SCH XXS | 168.3 | 762 | 381 | 305 | 143 |
| 5.5″ OD | 139.7 | 610 | 305 | 240 | 95 |
| 6.75″ OD | 171.45 | 762 | 381 | 305 | 150 |
All-petro offer a full range of long sweep tees c/w integral bull plugs from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep tees c/w integral bull plugs is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | B | R | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 406 | 203 | 150 | 34 |
| 3″ NB SCH XXS | 88.9 | 406 | 203 | 150 | 28 |
| 4″ NB SCH XXS | 114.3 | 560 | 280 | 210 | 51 |
| 5″ NB SCH XXS | 141.3 | 610 | 305 | 240 | 76 |
| 6″ NB SCH XXS | 168.3 | 762 | 381 | 305 | 132 |
| 5.5″ OD | 139.7 | 610 | 305 | 240 | 81 |
| 6.75″ OD | 171.45 | 762 | 381 | 305 | 137 |

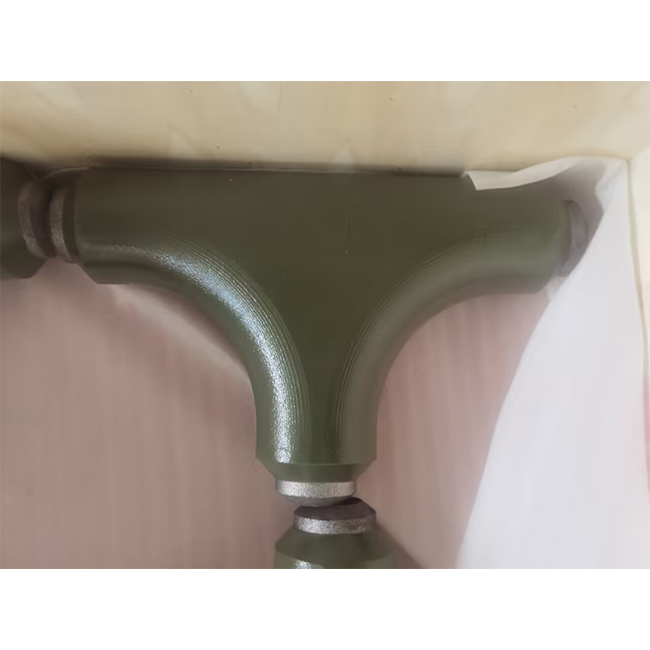

All-petro offer a full range of long sweep tees from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep tees is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | B | R | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 330 | 203 | 150 | 34 |
| 3″ NB SCH XXS | 88.9 | 330 | 203 | 150 | 28 |
| 4″ NB SCH XXS | 114.3 | 406 | 280 | 210 | 51 |
| 5″ NB SCH XXS | 141.3 | 483 | 305 | 240 | 76 |
| 6″ NB SCH XXS | 168.3 | 686 | 381 | 305 | 132 |
| 5.5″ OD | 139.7 | 483 | 305 | 240 | 81 |
| 6.75″ OD | 171.45 | 686 | 381 | 305 | 137 |
All-petro offer a full range of long sweep crosses from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. All-petro standard specification for our 4130 long sweep crosses is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | B | R | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 406 | 203 | 150 | 32 |
| 3″ NB SCH XXS | 88.9 | 406 | 203 | 150 | 48 |
| 4″ NB SCH XXS | 114.3 | 560 | 280 | 210 | 94 |
| 5″ NB SCH XXS | 141.3 | 610 | 305 | 240 | 138 |
| 6″ NB SCH XXS | 168.3 | 762 | 381 | 305 | 208 |
| 5.5″ OD | 139.7 | 610 | 305 | 240 | 148 |
| 6.75″ OD | 171.45 | 762 | 381 | 305 | 218 |
