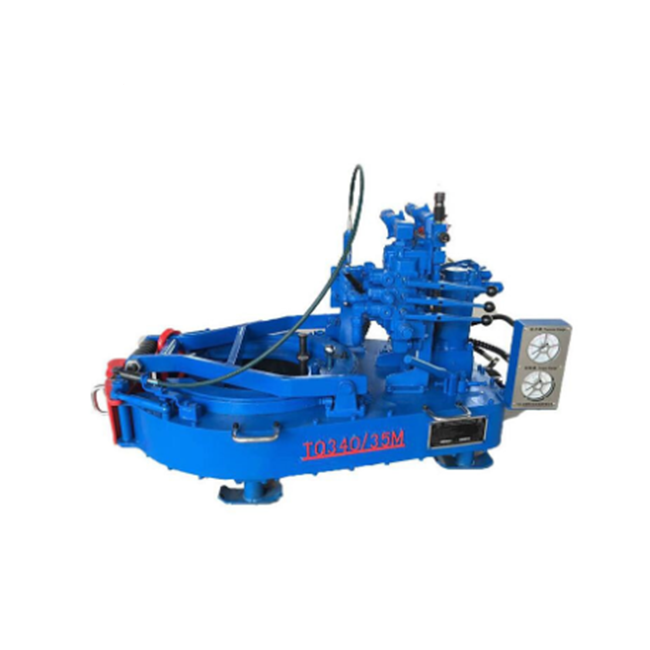

Following the quality policy of “advanced technology, elaborative manufacturing, strict management and persistent improvement”, we set up the brand Teda with outstanding quality, taking the API Q1 and ISO9001 system as our standards and guidelines. TQ340/35A Casing Power Tong has the following features as well:
◆ Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.
◆ Double swing head jaws, convenient to assemble and disassemble.
◆ Open gear supporting structure, improving the strength and rigidity.
◆ Wholly hydraulic mode and mechanical gear shift.
◆ With optional torque control system to display, record and control the make-up torque.
◆ Application Range： 51/2″、65/8″、7″、75/8″、85/8″、95/8″、103/4″、113/4″、133/8″Casing
◆ Torque Range @ 2320 psi / 16 Mpa
High gear: 3540ft-lbs. /4800Nm
Low gear: 25810 ft-lbs. /35000Nm
◆ This casing tong is sell well and convenient.
| Model | TQ340/35YA |
|---|---|
| Application range | 5 1/2” 6 5/8” 7” 8 5/8” 9 5/8” 10 3/4” 13 5/8” |
| High Gear Torque | 4800N.m @ 13.8MPa 3540ft-lbs @1740psi |
| Low Gear Torque | 35000N.m @ 13.8MPa 25814ft-lbs @1740psi |
| High Gear rpm | 42r/min |
| Low Gear rpm | 6r/min |
| Oil Flow | 120 L/min 31.7 gpm |
| Dimension: L x W x H | 1580 x 900 x 850 |
| Weight(including Backup Tong) | 750kg 1650lbs |
