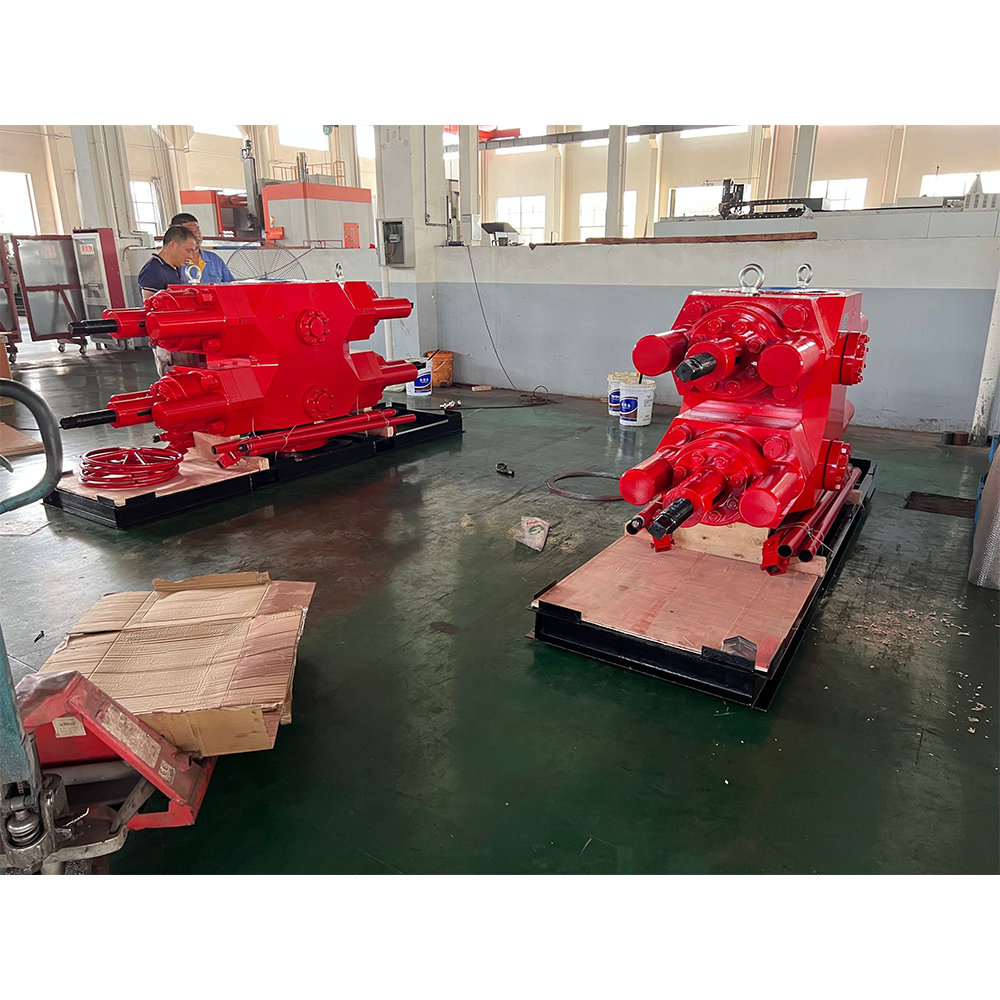

Our TYPE U Ram BOPs are designed and manufactured according to API Spec 16A standard and GB/T20174 and are equipped with single or double rams from 7 1/16″ to 21 1/4″ .
With the best quality front ram rubber, top ram rubber and flange sealing stacks, our TYPE U ram BOPs can work during the extreme working conditions such as high or low temperature and extreme chemical environments.
1.Pressure containing parts are forgings, providing excellent strength and impact ductility.
2.A large inventory of ram rubber which can seal by itself.
3.Areas exposed to fluids are welded with high nickel-based alloy for sour service.
| Type | U-shape Dual Ram BOP | Annular BOP |
|---|---|---|
| Model | 7 1/16″~13 5/8″ | 7 1/16″~13 5/8″ |
| Rated Pressure | 2,000~5,000 psi 13.8 MPa~34.5 MPa |
|
| Hydraulic Pressure | 1,200~1,500 psi 8.3MPa~10.3MPa |
|
| Nominal Bore | 7 1/16″~13 5/8″ | 7 1/16″~13 5/8″ |
| Working Temperature | -29℃ ~121℃ (T-20) | |
| Medium | Oil, natural gas (H2S), water | |
| Standard | API 16A/NACE MR0175 | |
