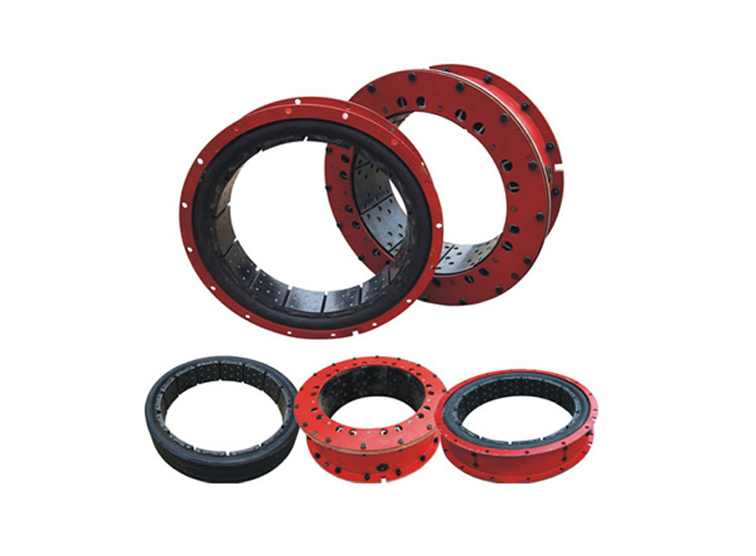

Ventilated Type Air Tube Clutch

Pneumatic clutch is a friction clutch with compressed air as the power source for operation. It is generally used on equipment that needs to transmit large torque and change the rotation direction quickly, such as oil drilling machinery, ships, large mechanical presses,excavators,ball mills, rubber and plastic machinery, etc.

Category: Tag:

Air tube clutch

Pneumatic Tube Clutch

Core Components: Air Bag, Spring Sheet, Torsion Bars, Brake Shoe Assembly…

We Supply API Drawworks Pneumatic Tube Clutch and various spare parts !

Pneumatic clutch is a friction clutch with compressed air as the power source for operation. It is generally used on equipment that needs to transmit large torque and change the rotation direction quickly, such as oil drilling machinery, ships, large mechanical presses,excavators,ball mills, rubber and plastic machinery, etc.

Common type ：LT300/100T,LT400/125T,LT500/125T,LT600/125T,LT700/200T,LT800/135T
2,Ventilation type：LT500/200T，LT500/250T，LT500/250T,LT600/250T,LT700/250T,LT800/250T,LT900/250T,LT1070/200T,LT1170/250T,LT965/305T,LT1168/305T,LT1120/300T,LT1250/300T

TypeLT300/100LT500/125TLT600/125TLT700/200LT700/135CBCLT800/135
Drawing115.101.00115.102.00115.105.00105.103.00115.107.00T14-013-00
Rotary Speed
r/min		Max2332-26671642-18771352-15471315-15041198-14501099-1328
Rating1348-1542949-1085781-894760-869687-881635-768
Torsional Moment
n.m		Max3080-403010455-1367014810-1936033080-4327022350-3266028850-42160
Rating2025-26866790-91149875-1290822060-2885014900-2177519230-28080
Working Pressure (Mpa)0.7-0.90.7-0.90.7-0.90.7-0.90.7-1.00.7-1.0
Pneumatic Tube Cubage (1)1.35.55.5172~42.4~5
Attrition Annulus dia (mm)300497597695700800
Join Link SizeMax dia.45072082010009001015
Max Width115154154246176176
Orientation dia.450d11720h11820d91000h11900k91015h11
Bolt number and dia.12-13H1212-17H1216-17H1212-27H12
4-25H8		20-17H1218-17H12
6-17H19
Bolt Distributing dia.430690790950870975
Air Tilet Pipe Screw ThreadM20x1.5M20x1.5M20x1.5M33x1.52-M20x1.52-M20x1.5
