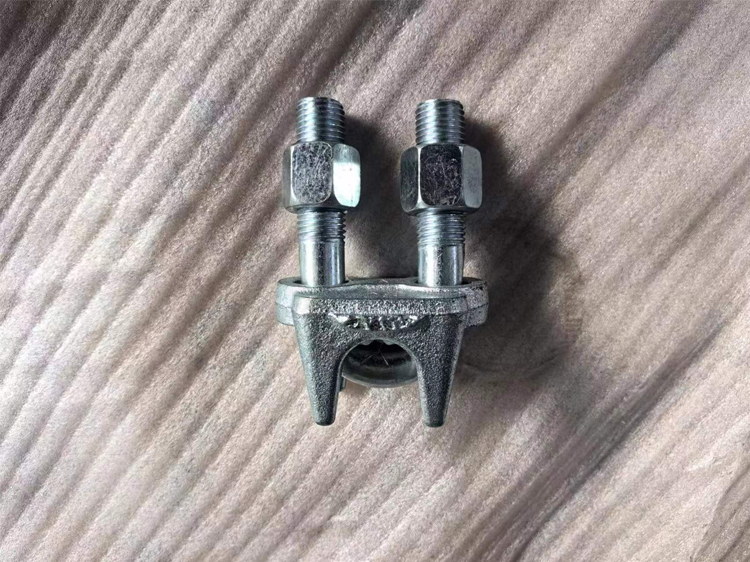

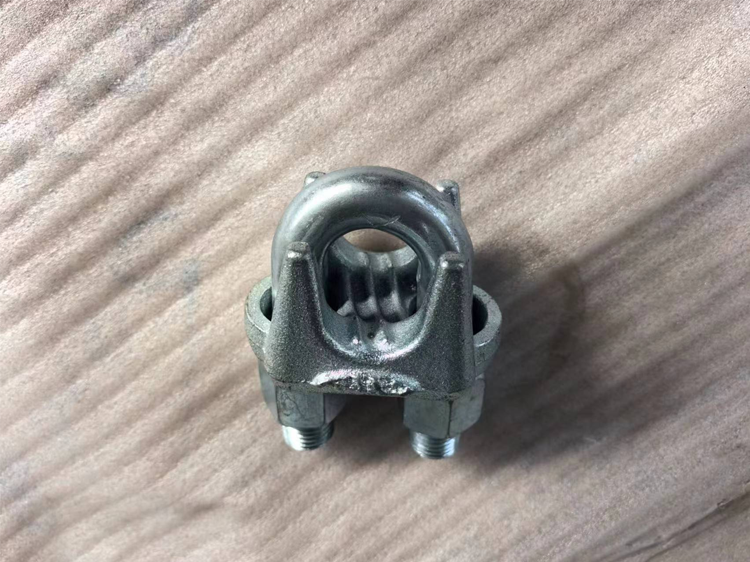

Wire Rope Clips

We can supply many different types steel wire rope clip.

Category:

We can supply many different types steel wire rope clip.

Rope Size(mm) Dimensions(mm) Weight Each (kg/pc)
A B C D   F G
3 9 10 12 4 21 20 0.014
5 11 11 13 5 23 24 0.015
6.5 13 12 15 5 26 28 0.021
8 16 14 19 6 28 34 0.041
10 19 18 22 8 34 42 0.068
11 20 19 22 8 36 54 0.072
13 24 23 30 10 42 55 0.13
14 25 23 30 10 44 57 0.135
16 29 26 33 12 50 63 0.21
19 32 29 38 12 54 75 0.28
22 37 33 44 14 61 85 0.04
26 41 35 45 14 65 95 0.44
