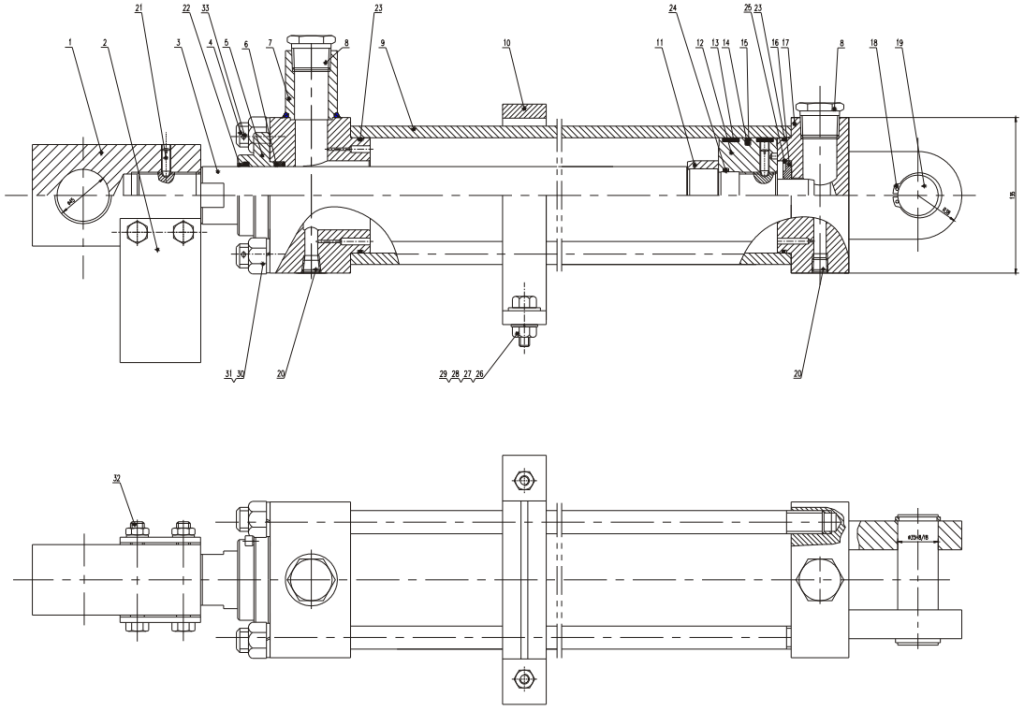

Cathead cylinder I(Drawing NO.:Z07150000002AA)
| S/N. | Part. NO | Description | Qty | S/N. | Part. NO | Description | Qty |
|---|---|---|---|---|---|---|---|
| 1 | P1300105AA | Coupling | 1 | 18 | 4313800035 | Elostic retainer ring 35 | 1 |
| 2 | P7200156AA | Connection rod | 1 | 19 | P2000099AA | Pin shaf | 2 |
| 3 | P2300028AA | Piston rod | 1 | 20 | P1200114AA | Screw plug NPT1/4 | 2 |
| 4 | P2200308AA | Tension rod | 4 | 21 | 4317008020 | Set screw M8X20 | 2 |
| 5 | P1101745AA | Copper sleeve | 1 | 22 | 5300300024 | Dust ring J-50 | 1 |
| 6 | 5302000451 | BA type rind | 1 | 23 | 5300100248 | 0 sedling ring 100X3.1 | 2 |
| 7 | Z07150200007AA | Cover,cylinde | 1 | 24 | 5300100121 | 0 sealing ring 41.2X3.55 | 1 |
| 8 | OBJ120108 | Plug NPT1 | 2 | 25 | 4313800060 | Elostic retainer ring 60 | 1 |
| 9 | P1600019AA | Cylinder body | 1 | 26 | 4300812055 | Bolt M12X55 | 2 |
| 10 | Z07150100001AA | Support | 1 | 27 | 4317100012 | Washer 12 | 4 |
| 11 | P1100158AA | Cushion sleeve | 1 | 28 | 4313100012 | Spring washer 12 | 4 |
| 12 | P0700006AA | Piston | 1 | 29 | 4309300012 | Nut M12 | 4 |
| 13 | P1100160AA | Guide ring | 2 | 30 | 4315100020 | Nut M20 | 4 |
| 14 | P1700064AA | Seal ring | 1 | 31 | 4313100020 | Spring wosher 20 | 4 |
| 15 | P1700065AA | Anti-wear ring | 1 | 32 | 4300812090 | Bolt M12X90 | 2 |
| 16 | P1100159AA | Cushion ring | 1 | 33 | 4314532030 | Cotter pin o3.2X30 | 4 |
| 17 | Z07150200002AA | End cover,righ | 1 |
