XJ550 Workover Rig Parts-Telescoping cylinder

XJ550 workover rig, with 1350kN/30348 of max static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations.

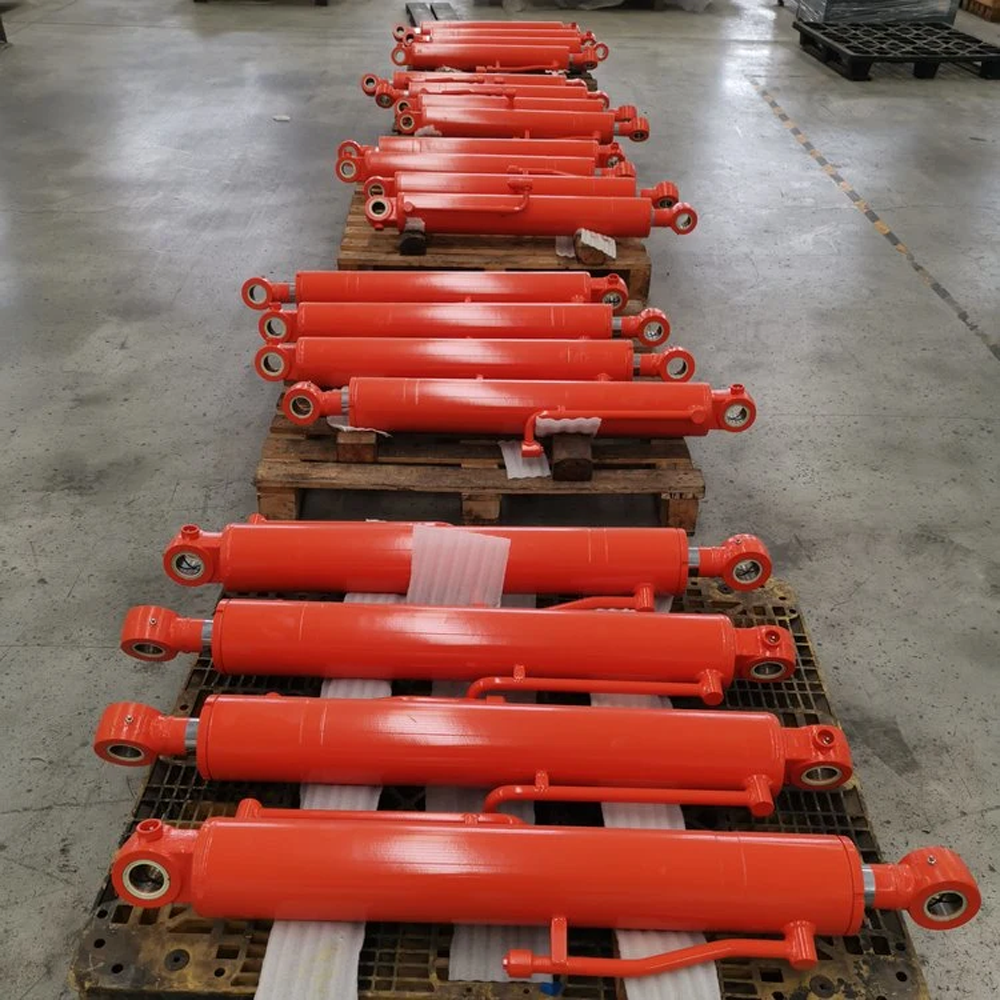

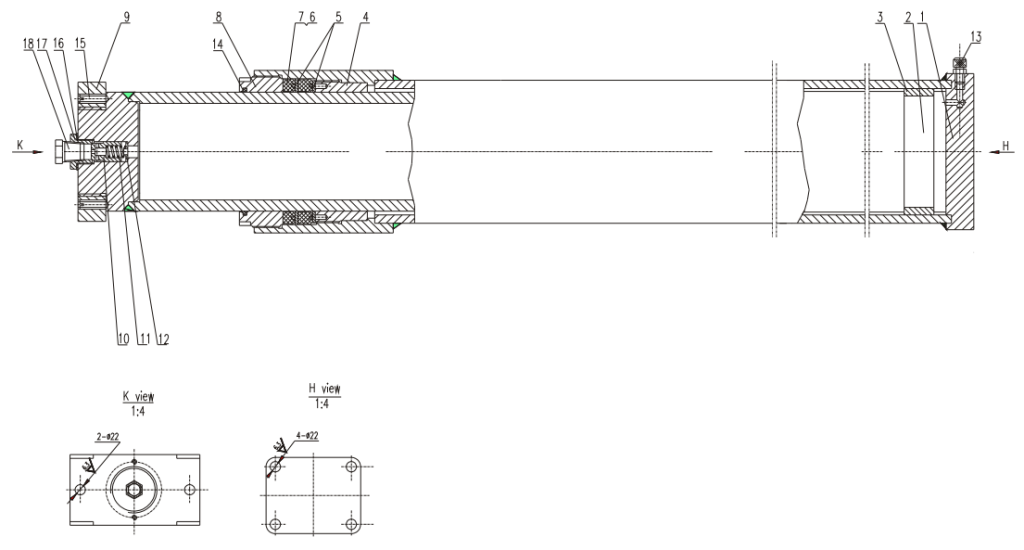

Telescoping cylinder (Drawing NO.:Z07130000011AA)

S/N. Drawing No. Description Qty
1 Z07130200007AA Cylinder body 1
2 Z07130100027AA Plunger 1
3 P1100319AA Guide sleeve 1
4 P1100320AA Copper sleeve 1
5 P1000166AA Washer 2
6 P1700167AA Sealing ring 2
7 P1700168AA 0 ring 2
8 P1200207AA Nut 1
9 P0200188AA Flonge 1
10 P4600013AA Check valve 1
11 P9000047AA Spring 1
12 P0900038AA Spring seat 1
13 Z07120200001AA Air exhoust plug 1
14 5300300030 J type dust ring D130 1
15 4315908030 M8X30 set screw 2
16 5300100089 0 seal ring 30X3.5 1
17 QBJ10072704 M27X2-1/2″bushing 1
18 QBJ120104 Z1/2”plug 1
