XJ550 Workover Rig Parts-Traveling block assembly

XJ550 workover rig, with 1350kN/30348 of max static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations.

Category: Tag:

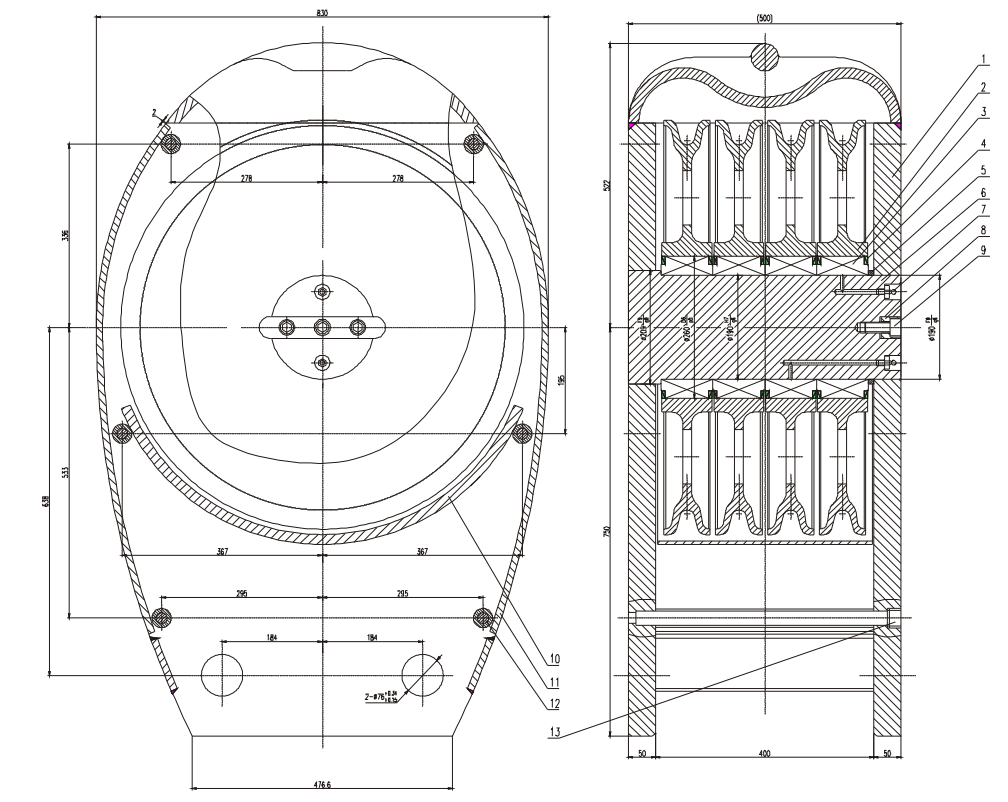

Traveling block assembly(Drawing NO.:Z1612010001AA)

S/N.Drawing No.DescriptionQty
1Z16120101001AASheove frome1
2P03D0172AASheove4
3450D100329Bearing2097938E4
4Z16120102001AA(il seal8
5P17D0323AASxcer liner1
6P24D0303AASheove shaft1
74101800008Oil cup M10X14
8P6400692AALocoting piece1
94305620050Bolt M20X503
10Z161201030D1AALine stopping plote1
11Z16120104001AASide cove2
12P2000455AAPin shaft6
13P2200496AASquare tapered screw plug NPT1′6
14P1000377AAAdjusting ring.bearing4
