XJ550 Workover Rig Parts-Valve saver

XJ550 workover rig, with 1350kN/30348 of max static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations

Category:

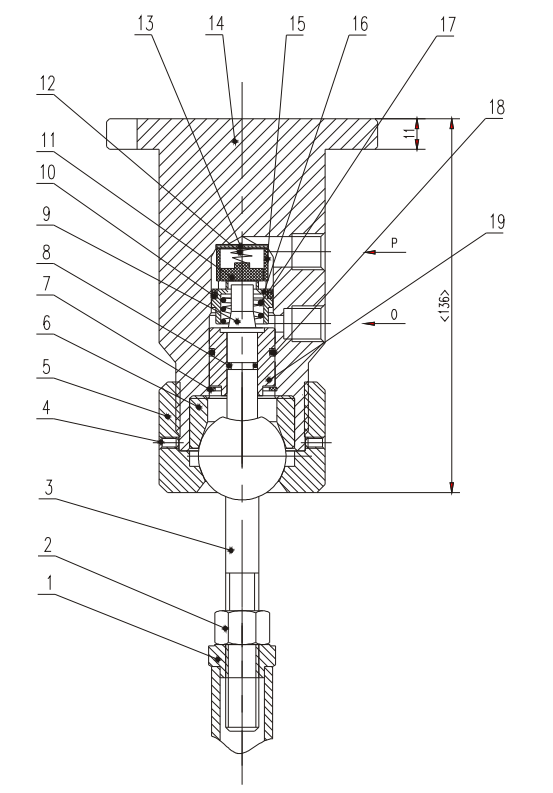

Valve saver (Drawing NO.:Z08240000001AA)

S/N. Drawing No. Description Qty
1 Z08240100001AA Rod 1
2 4312700012 Nut M12 1
3 P5100018AA Regulating lever 1
4 4307805006 Bolt M5X6 2
5 P0900014AA Cap 1
6 P1100059AA Guide sleeve 1
7 4313700024 Retoiner ring 24 1
8 5300100030 0 sealing ring 11×1.9 1
9 P2600011AA Valve stem 1
10 5300100065 0 sealing ring 22×2.4 1
11 P6000366AA Spacing plote 1
12 P9000012AA Toper spring 08 1
13 P1000050AA Wosher 1
14 Z08240200001AA Valve body ossembly 1
15 P0900015AA Seat ring 1
16 P1100060AA Valve sleeve 1
17 P9000013AA Spring φ1.6 1
18 5300100071 0 sealing ring 24×2.4 1
19 P1100061AA Guide sleeve 1
