XJ550 Workover Rig Parts-Wire connection , lower section of mast

XJ550 workover rig, with 1350kN/30348 of max static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations.

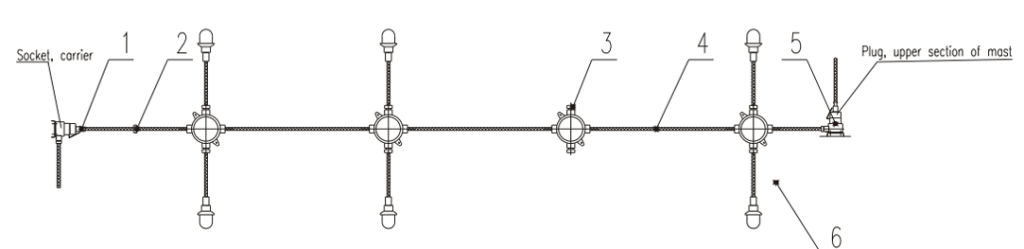

Wire connection diagram, lower section of mast(Drawing NO.:Z09200000003AA)

S/N.Drawing No.DescriptionQty
13102000033Explosion-proof socket1
23102500043Seal connector,cable7
3QBJ120106Hex tapered screw plug2
43000300043Coble40000
53102000032Explosion-proof socket1
63200700064Ø12 antiflaming bellows10000
