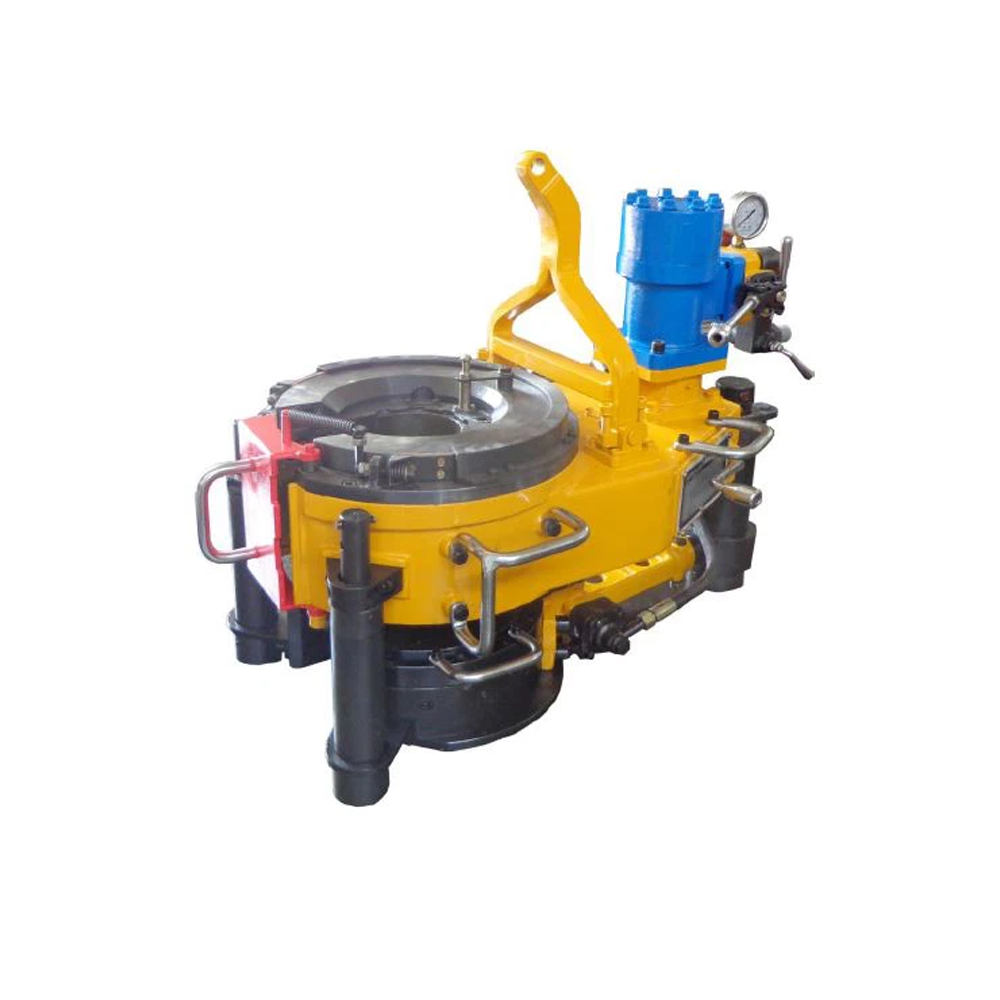

XQ114/9 Hydraulic Tubing Tong

XQ114/9 hydraulic power tong is a special machine used in oil field workover operation to unload tubing thread.Heavy-duty workover power tongs with a maximum pipe diameter of 4 1/2 “tubing, with a maximum torque of over 5 KN.m, suitable for various complex conditions workover operation.

XQ114/9 hydraulic power tong is a special machine used in oil field workover operation to unload tubing thread.Heavy-duty workover power tongs with a maximum pipe diameter of 4 1/2 “tubing, with a maximum torque of over 5 KN.m, suitable for various complex conditions workover operation.

Model XQ114/9
Pipe Size Range of Master Tong Φ60-114
2 3/8″- 4 1/2″
Pipe Size Range of Backup Tong Φ73-141.5
2 7/8″- 5 9/16″
High Gear Rated Torque 1670 N.m
1232 ft-lbs
Low Gear Rated Torque 9000 N.m
6630 ft-lbs
High Gear Rated Speed 81 r/min
Low Gear Rated Speed 15 r/min
Rated Operation Pressure 12 MPa
1740 psi
Rated Flow 100 L/min
26 gpm
Dimension :L x W x H 900x 570 x 600
Weight(including Backup Tong) 260 kg
620 lbs
