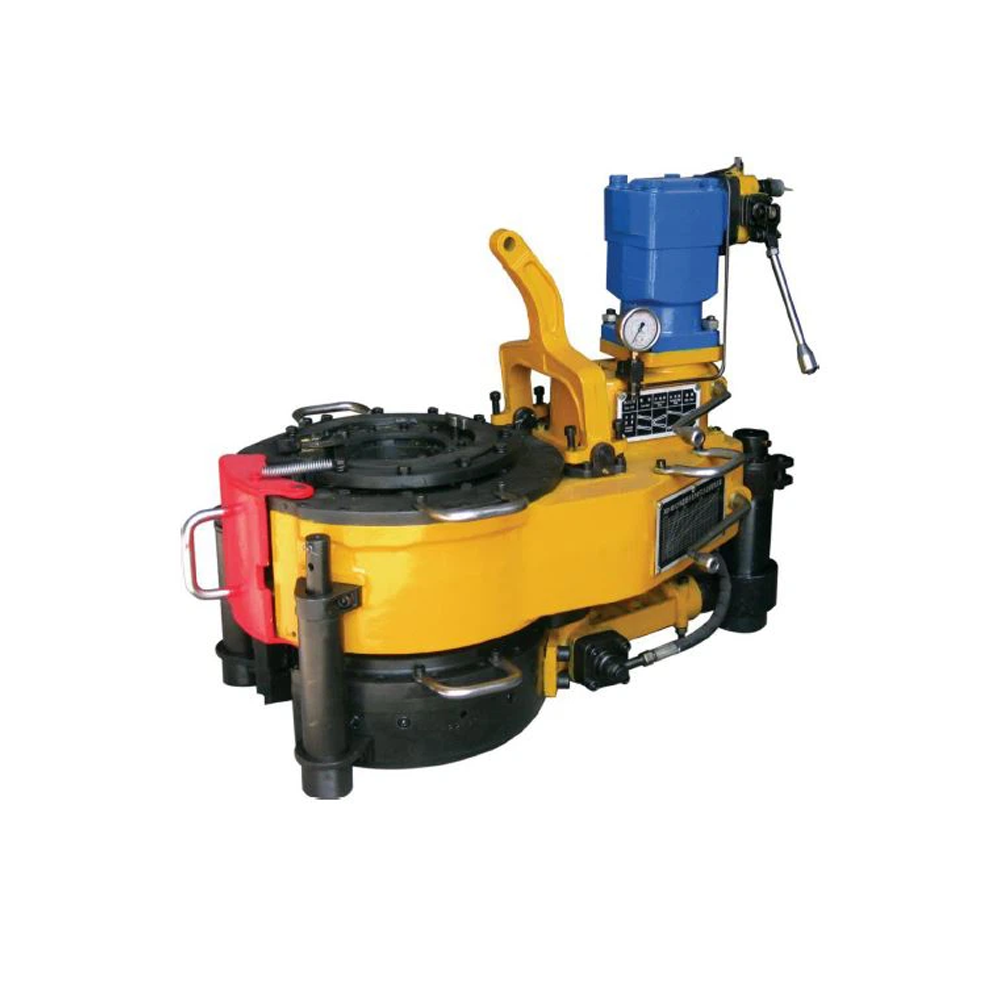

Model XQ140/12A hydraulic power tong is a mouth opening power tong which can quickly make-up or
break-out pipe strings in well service. It is used in making-up or breaking-out tubing, small drilling pipe
and small casing with diameters from 23/8″-51/2″ . Compared with the same type of tongs by other tong
makers, it features simple structure, convenient operation, reliable performance, long life, broad application
range and large torque. It is widely used in onshore or offshore oilfields. It can reduce workload, improve
work efficiency and the well service quality.
| Model | XQ89/3C | XQ114/6YB | XQ140/12YA | XQ140/20Y |
|---|---|---|---|---|
| Pipe size range of master tong | φ60-89 | φ60-114 | φ73-140 | φ60-140 |
| 2 3/8”-3 1/2” | 2 3/8”-4 1/2” | 2 7/8”-5 1/2” | 2 3/8”-5 1/2” | |
| Pipe size range of backup tong | φ60-114 | φ60-114.5 | φ73-156 | φ60-156 |
| 2 3/8”-4 1/2” | 2 7/8”-41/2” | 2 7/8”-3 1/2” | 2 3/8”-6 1/8” | |
| High gear rated torque | 1270N.m | 1650N.m | 2600N.m | 2300N.m |
| 937ft-lbs | 1217ft-lbs | 1918ft-lbs | 1696ft-lbs | |
| Low gear rated torque | 3300N.m | 6070N.m | 12000N.m | 20000N.m |
| 2434ft-lbs | 4477ft-lbs | 8851ft-lbs | 14751ft-lbs |
