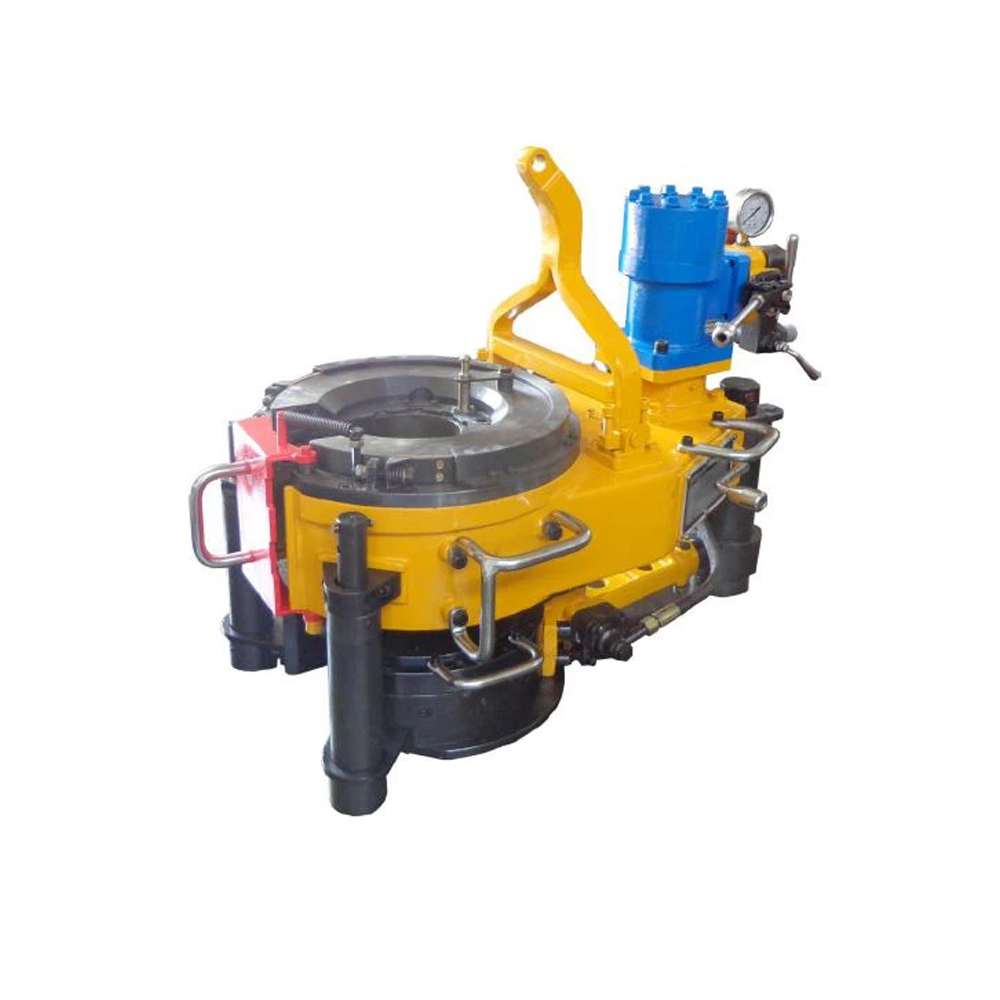

Model XQ140/20 hydraulic power tong is a mouth opening power tong which can quickly make-up or break-out pipe strings in well service. It is used in making-up or breaking-out tubing, small drilling pipe and small casing with diameters from 2 3/8＂-5 1/2 ＂ (60mm to 140mm). Compared with the same type of tongs by other tong makers, it features simple structure, convenient operation, reliable performance, long life, broad application range and large torque. It is widely used in onshore or offshore oilfields. It can reduce workload, improve work efficiency and the well service quality.
| Model | XQ89/3C | XQ114/6YB | XQ140/12YA | XQ140/20Y |
|---|---|---|---|---|
| Pipe size range of master tong | φ60-89 | φ60-114 | φ73-140 | φ60-140 |
| 2 3/8”-3 1/2” | 2 3/8”-4 1/2” | 2 7/8”-5 1/2” | 2 3/8”-5 1/2” | |
| Pipe size range of backup tong | φ60-114 | φ60-114.5 | φ73-156 | φ60-156 |
| 2 3/8”-4 1/2” | 2 7/8”-41/2” | 2 7/8”-3 1/2” | 2 3/8”-6 1/8” | |
| High gear rated torque | 1270N.m | 1650N.m | 2600N.m | 2300N.m |
| 937ft-lbs | 1217ft-lbs | 1918ft-lbs | 1696ft-lbs | |
| Low gear rated torque | 3300N.m | 6070N.m | 12000N.m | 20000N.m |
| 2434ft-lbs | 4477ft-lbs | 8851ft-lbs | 14751ft-lbs |
