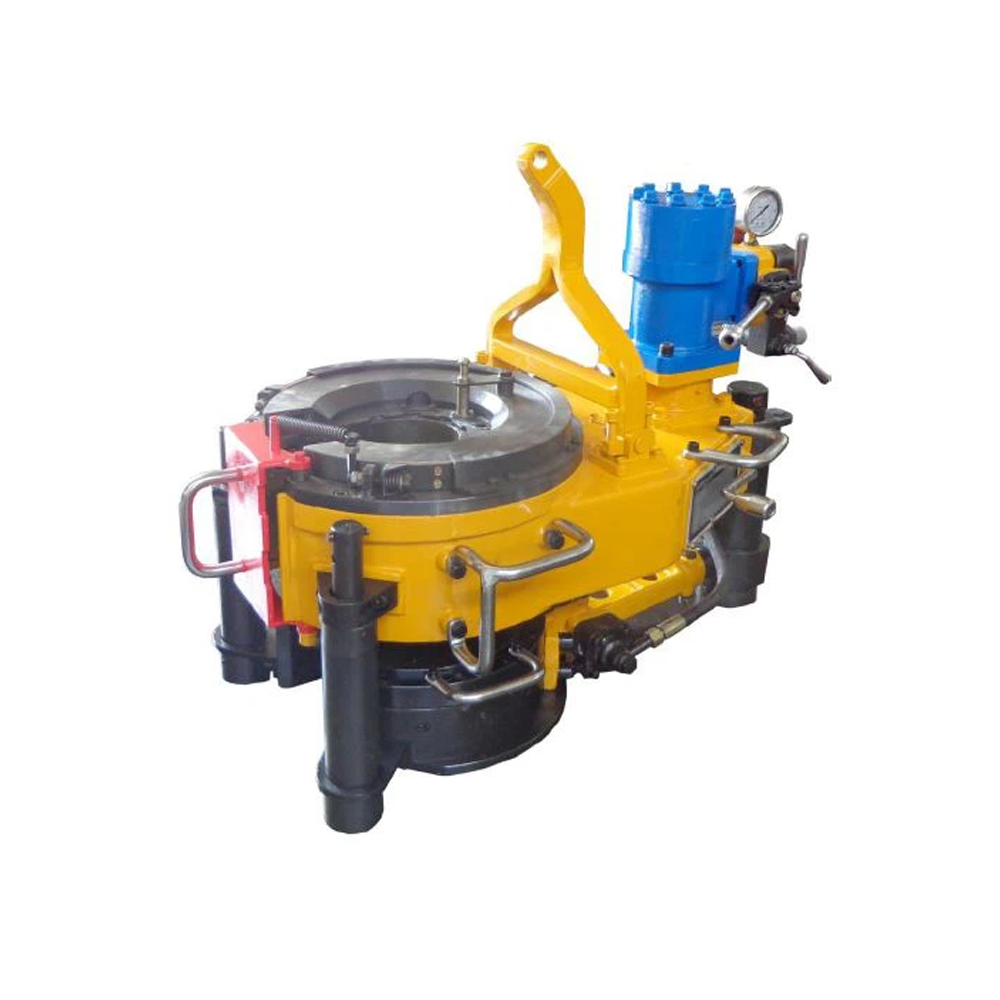

Model XQ89/3C Hydraulic Power Tong is a special device for Well Service, which is used to make up and break out tubing thread. It is a improved new product based on Model XQ89/3B hydraulic power tong. Driving by hydraulic motor with low speed and large torque, model“H”manual control valve simply matching with oil motor. It’s a lighter hydraulic power tong for well service .
This Product Has The Following Features.
●The tong head uses inner curved roller climbing and cliping mechanism and needn’t to change any part during making up or breaking out the tubing thread which diameter is “27/8″”or“31/2″”.
●Two shifts provides high speed at the high gear and large torque at the low gear.
●The brake mechanism is on the upper and so it is easy to adjust and repair.
●The new type hydraulic Backup tong and master tong form a combined tong . Operating the manual control valve of master tong, the combined tong clipping and unloosing simultaneously.
●The adequate torque will be gained during making up and breaking out the various steel tube by adjusting pressure of oil .
●This product has owned several patents of China.
| Model | XQ89/3C |
|---|---|
| Pipe Size Range of Master Tong | Φ60-89 23/8”- 3 1/2” |
| Pipe Size Range of Backup Tong | Φ60-114 2 3/8”- 4 1/2” |
| High Gear Rated Torque | 1270N.m 937ft-lbs |
| Low Gear Rated Torque | 3300N.m 2434ft-lbs |
| High Gear Rated Speed | 60r/min |
| Low Gear Rated Speed | 23r/min |
| Rated Operation Pressure | 10 MPa 1450 psi |
| Max. Flow | 80 L/min 21 gpm |
| Dimension :L x W x H | 830x 430 x 555 |
| Weight(including Backup Tong) | 170kg 375lbs |
