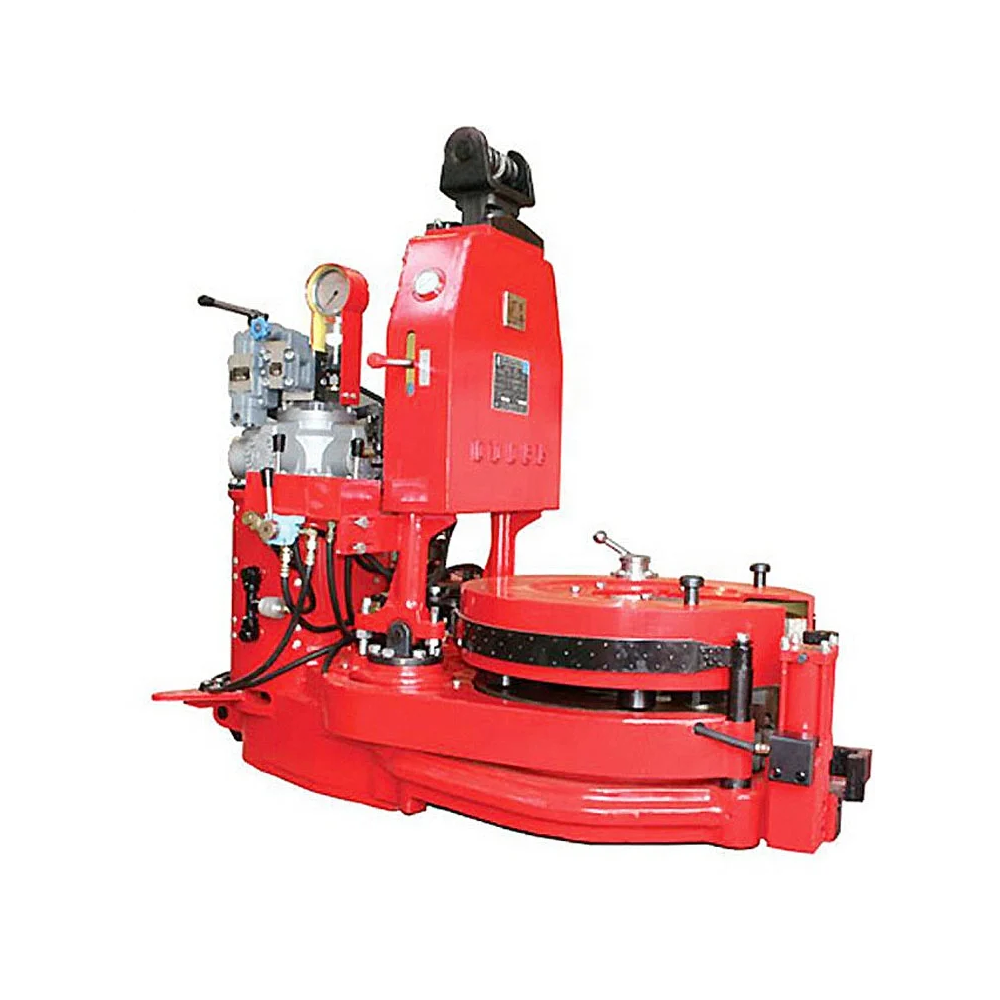

ZQ203-125 Drill pipe power tong is updated power tong of ZQ203-100 drill pipe tong, it is suitable for petroleum and mine drilling operation. Tong head is opening type, it can automatically release the drill pipe and the property is flexible. This tong makes up or breaks out without any cat head, manual tong and spinning rope (or spinning chain). The structure is the combination together with spinner and torque tong.
Using this tong can ensure safety, save labor force and enhance drilling efficiency. It is special suitable for frequent round trip and long drilling period.
ZQ203-125 Drill pipe tong has a great improvement comparing with ZQ203-100 Drill pipe tong, it has bigger torque and improved structure, installed with hydraulic lift for adjusting the height of this power tong itself.
Main Technical Parameters：
| Model | ZQ203-125 | ZQ203-100 | ZQ203-100A | ZQ203-100B | ZQ162-50 | ZQ127-25 | |
|---|---|---|---|---|---|---|---|
| Size range | mm | 127-203 | 121-203 | 121-203 | 121-203 | 85-162 | 65-127 |
| in | 3 1/2coupling | 3 1/2coupling | 3 1/2coupling | 3 1/2coupling | 2 3/8coupling | 2 3/8coupling | |
| 8body | 8body | 8body | 8body | 5body | 3 1/2coupling | ||
| Max.torque | kN.M | 125 | 100 | 100 | 100 | 50 | 25 |
| ft.lbf | 92200 | 73750 | 73750 | 73750 | 36880 | 18440 | |
| Speed of tong Hi. | rpm | 40 | 40 | 40 | 40 | 60 | 65 |
| Speed of tong To. | rpm | 2.7 | 2.7 | 2.7 | 2.7 | 4.1 | 10.5 |
| Hydraulic system pressure rating |
Mpa | 20 | 16.6 | 16.6 | 16.6 | 16 | 12 |
| Psi | 2900 | 2400 | 2400 | 2400 | 2320 | 1740 | |
| Hydraulic system pressure rating |
L/min | 114 | 114 | 114 | 114 | 120 | 180 |
| gpm | 30 | 30 | 30 | 30 | 32 | 48 | |
| Stoke of shifting cylinder |
mm | 1500 | 1500 | 1500 | / | 1000 | 1000 |
| in | 59 | 59 | 59 | / | 39.4 | 39.4 | |
| Moving distance of tong |
mm | / | / | / | 0-3000 | / | / |
| in | 0-59 | ||||||
| Lifting distance of tong |
mm | / | / | 0-485 | 0-1800 | / | / |
| in | 0-19 | 0-31.5 | |||||
| Overall dimensions | mm | 1720×1050×1750 | 1700×1000× 1400 |
1700×1000× 1400 |
1750×1650 ×2050 |
1570×800 ×1190 |
1110×790 ×820 |
| in | 68×41×69 | 67×39×55 | 67×39×55 | 69×65×81 | 62×31×47 | 44×31×32 | |
| Weight | Kg | 2600 | 2400 | 2500 | 3250 | 1500 | 620 |
| Ib | 5730 | 5290 | 5510 | 7165 | 3310 | 1360 | |
